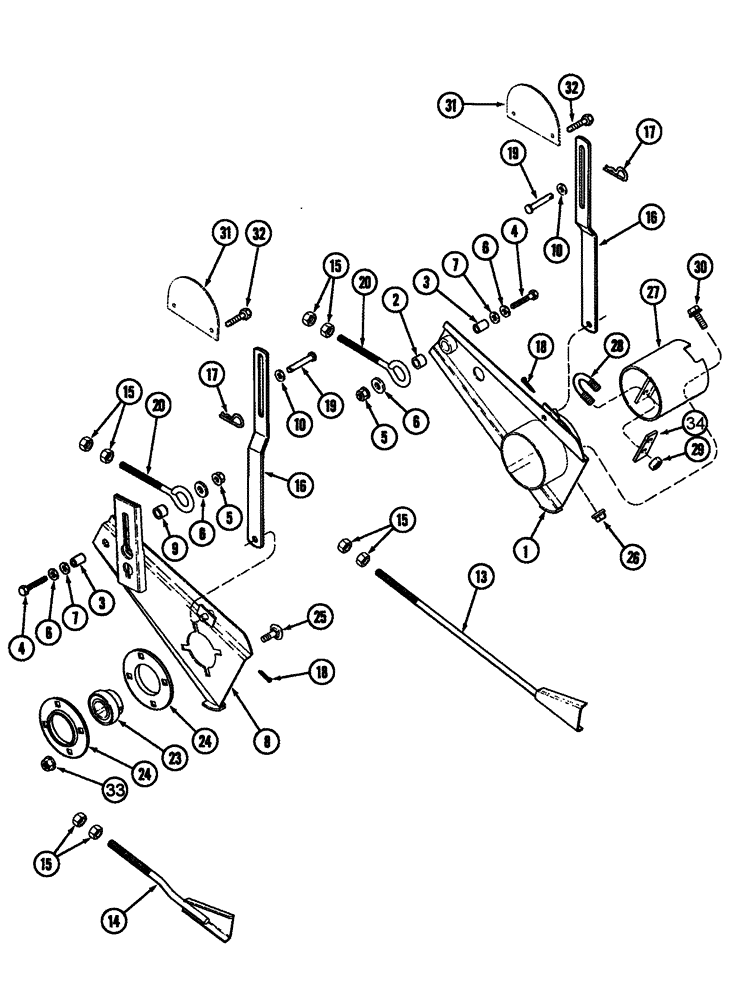

Запчасти Case IH 1020 (09C-05) - AUGER SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

87585175

BRACKET

auger, LH

1шт.

Includes 2

1шт.

2

189971C1

BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L

pivot

1шт.

3

1968840C1

SPACER

3/4" OD x 1 1/16", auger pivot

2шт.

4

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

6

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

7

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

8

128429A2

SUPPORT

bracket, RH auger

1шт.

9

189971C1

BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L

pivot

1шт.

10

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

2шт.

13

128199A1

SUPPORT

auger adjusting LH

1шт.

14

133822A1

SUPPORT

auger adjusting, RH

1шт.

15

280431

NUT,1/2"-13, G5

8шт.

16

1320723C3

SUPPORT

bracket, auger lift

2шт.

17

87045537

HAIR PIN COTTER

.148 x 3 5/16"

2шт.

18

432-1218

COTTER PIN,3/16" x 1 1/8"

2шт.

19

86624072

HEADED PIN,12.7mm OD x 69.85mm L

2шт.

20

127870A1

EYEBOLT

auger pivot

2шт.

23

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

auger shaft

1шт.

24

663562R1

FLANGE

bearing

2шт.

Alternate with 1307583C1

1шт.

24

1307583C1

FLANGED BEARING

bearing 80 mm 4 bolt

2шт.

Alternate with 663562R1

1шт.

25

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

26

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

27

1320695C2

TUBE,133.35 mm OD

auger finger adjuster

1шт.

28

1307195C2

U-BOLT,1/2" - 13 x 40.37mm W x 55mm L, Gr 8

1/2" NC

1шт.

29

86992215

LOCK NUT,1/2"-13, GC

2шт.

30

30944

BOLT,Hex Flg, 1/2" - 13 x 1"

2шт.

31

183064A1

SHIELD

auger lift bracket, Serial Range: -JJC0350294

2шт.

32

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

4шт.

33

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

34

87441010

PLATE

auger tube

1шт.
