Запчасти Case IH 1020 (09C-04) - FLIGHT EXTENSION SHORT - 22.5, 25.0 AND 30.0 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

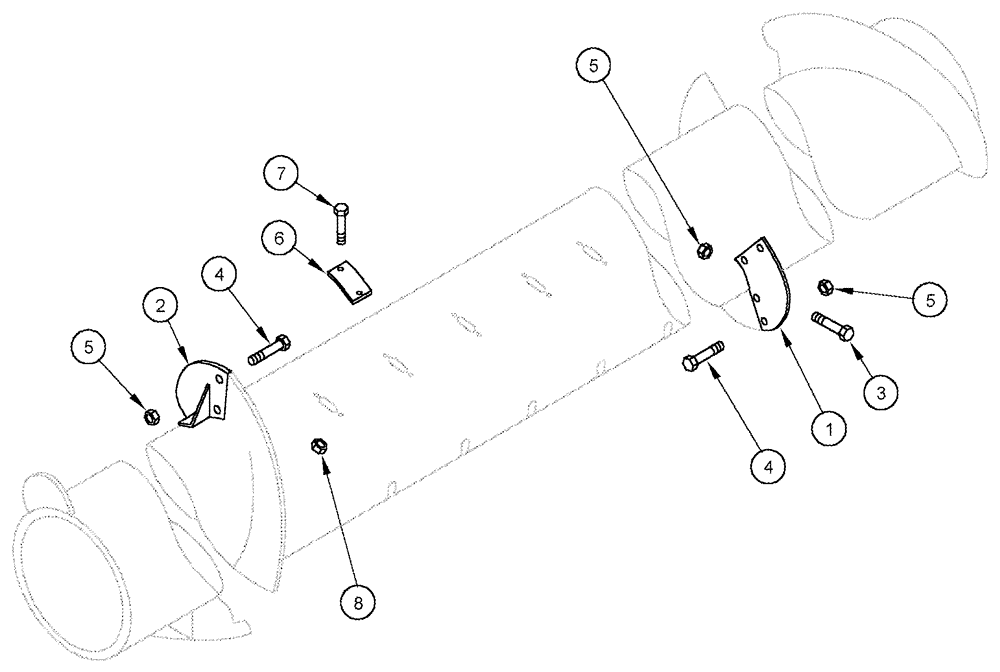

Схема запчастей Case IH 1020 - (09C-04) - FLIGHT EXTENSION SHORT - 22.5, 25.0 AND 30.0 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS
1
2
5
3
8
5
4
7
6
5
4

Артикул

Название

Примечание

Количество

1

321820A1

EXTENSION

auger flight RH

1шт.

2

321819A1

EXTENSION

auger flight LH

1шт.

3

30944

BOLT,Hex Flg, 1/2" - 13 x 1"

2шт.

4

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

5

232-5318

FLANGE NUT,Flg, 1/2"-13

6шт.

6

167823C1

COVER

2шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

8

280129

NUT,1/4"-20

4шт.

9

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

Not Shown

1шт.

Used to plug slots when short extensions are not used.

1шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

Not Shown

1шт.

Used to plug slots when short extensions are not used.

1шт.

11

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

Not Shown

1шт.

Used to plug slots when short extensions are not used.

1шт.

Выбрано товаров: 17
