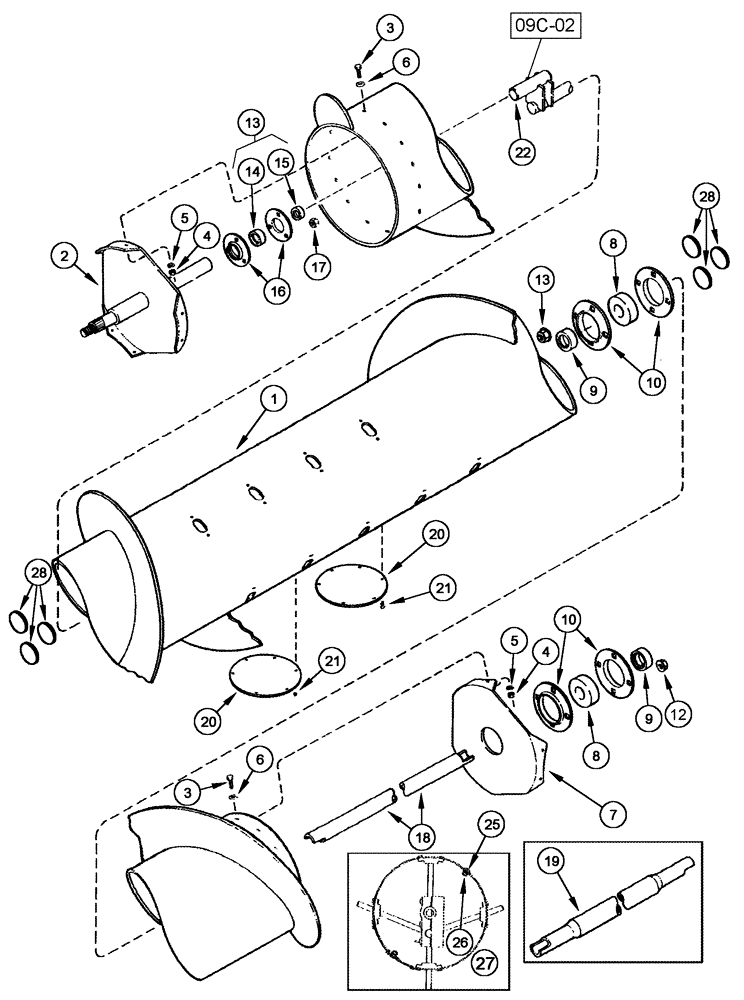

Запчасти Case IH 1020 (09C-01) - AUGER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

106001A2

AUGER

15.0 foot

1шт.

1

106002A2

AUGER

16.5 foot

1шт.

1

106003A2

AUGER

17.5 foot, Serial Range: -JJC0350294

1шт.

1

106004A2

AUGER

20.0 foot, Serial Range: -JJC0350294

1шт.

1

322193A1

AUGER

with flight extension 22.5 foot, Serial Range: -JJC0350294

1шт.

1

322192A1

AUGER

with flight extension 25.0 foot, Serial Range: -JJC0350294

1шт.

1

349016A1

AUGER

header 5 piece, 25.0 foot, Latin America Only

1шт.

1

322191A2

AUGER

30.0 foot (3 piece), Serial Range: -JJC0350294

1шт.

1

359655A1

AUGER

header, 5 piece, with extension, Latin America Only

1шт.

2

106024A1

SHAFT

drive

1шт.

3

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

12шт.

4

280136

NUT,3/8"-16, G8

12шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

12шт.

7

1307256C1

RETAINER

auger LH

1шт.

8

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

auger shaft

2шт.

9

455112R11

COLLAR

locking, bearing, with set screw

2шт.

10

663562R1

FLANGE

bearing

4шт.

Alternate with 1307583C1

1шт.

10

1307583C1

FLANGED BEARING

bearing 80 mm 4 bolt

4шт.

Alternate with 663562R1

1шт.

12

232-5318

FLANGE NUT,Flg, 1/2"-13

8шт.

13

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

double flange mount

1шт.

Includes 14, 15

1шт.

14

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

double flange mount

1шт.

15

38260

COLLAR

lock 1" bore 1 1/2" OD

1шт.

16

937517R1

FLANGE

bearing

2шт.

17

231-5315

FLANGE NUT,Flg, 5/16"-18

3шт.

18

1307262C1

TUBE,38.087 mm OD, 1793 mm Length

finger adjusting (15.0 foot)

1шт.

18

1326828C1

TUBE,38.087 mm OD, 2021.6 mm Length

finger adjusting (16.5 foot)

1шт.

18

1307263C1

TUBE,38.087 mm Diameter, 2174 mm Length

finger adjusting (17.5 foot)

1шт.

18

1307264C1

TUBE,38.087 mm Diameter, 2555 mm Length

finger adjusting (20.0 foot)

1шт.

18

1307265C1

TUBE,38.087 mm Diameter, 2936 mm Length

finger adjusting (22.5 foot)

1шт.

19

1307266C1

TUBE

finger adjusting (25.0 foot), Serial Range: -JJC0350294

1шт.

19

1307267C1

TUBE

finger adjusting (30.0 foot), Serial Range: -JJC0350294

1шт.

20

184505C1

COVER

handhole

2шт.

21

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

12шт.

22

REF

INSTRUCTION

Shaft Assy

1шт.

See figure 09C-02

1шт.

25

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

26

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

27

495-81145

WASHER,13/32" x 1 3/4" x .120"

2шт.

28

353-417

PLUG,Dome, 2.000" hole, Nylon

6шт.
