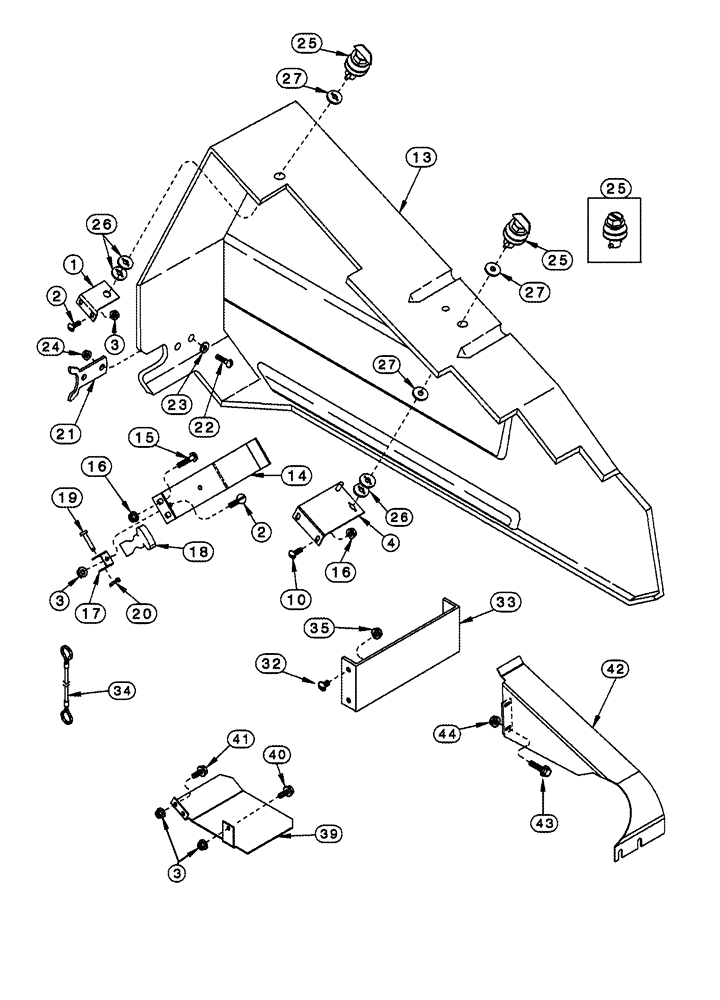

Запчасти Case IH 1020 (09B-12) - KNIFE DRIVE SHIELDS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1316510C2

SUPPORT

upper shield

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

4шт.

3

145458

SERRATED NUT,5/16"-18 GR 5 ZND

7шт.

4

1326758C1

SUPPORT

shield, upper front

1шт.

10

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

2шт.

13

1316693C4

SHIELD

drive LH

1шт.

14

1326386C2

SUPPORT

shield, lower rear, LH, Serial Range: -JJC0350294

1шт.

15

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

2шт.

16

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

17

188103C2

BRACKET

Hook Anchor, Serial Range: -JJC0350294

1шт.

18

494307C1

LATCH

hook

1шт.

19

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

1шт.

20

80755

COTTER PIN,1/8" OD x 1" L

1шт.

21

L105124

LATCH HOOK

, Serial Range: -JJC0350294

1шт.

22

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

23

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

2шт.

24

523310

SERRATED NUT,Flng, #10 - 24, Gr 5

flange, #10-24

2шт.

25

1326408C2

STUD,25.4mm OD x 52.3mm L

stud, shield

2шт.

25

252117A1

FASTENER

shield

1шт.

Australia Only

1шт.

26

1326407C1

RETAINER

shield stud

4шт.

27

495-81023

WASHER,17/32" x 1 1/4" x .030"

1шт.

33

131988A1

SUPPORT

shield, front LH, Serial Range: -JJC0350294

1шт.

34

126396A1

CABLE

shield anchor

1шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

39

291789A2

SHIELD

knife drive, lower rear, Serial Range: -JJC0350294

1шт.

40

86512168

BOLT,Hex Serr Flg, 5/16" - 18 x 1"

1шт.

41

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

42

256144A1

SHIELD

knife drive belt, Serial Range: -JJC0350294

1шт.

43

523292

BOLT,1/4" - 20 x 1.03" OAL

2шт.

44

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

32

86624125

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

2шт.
