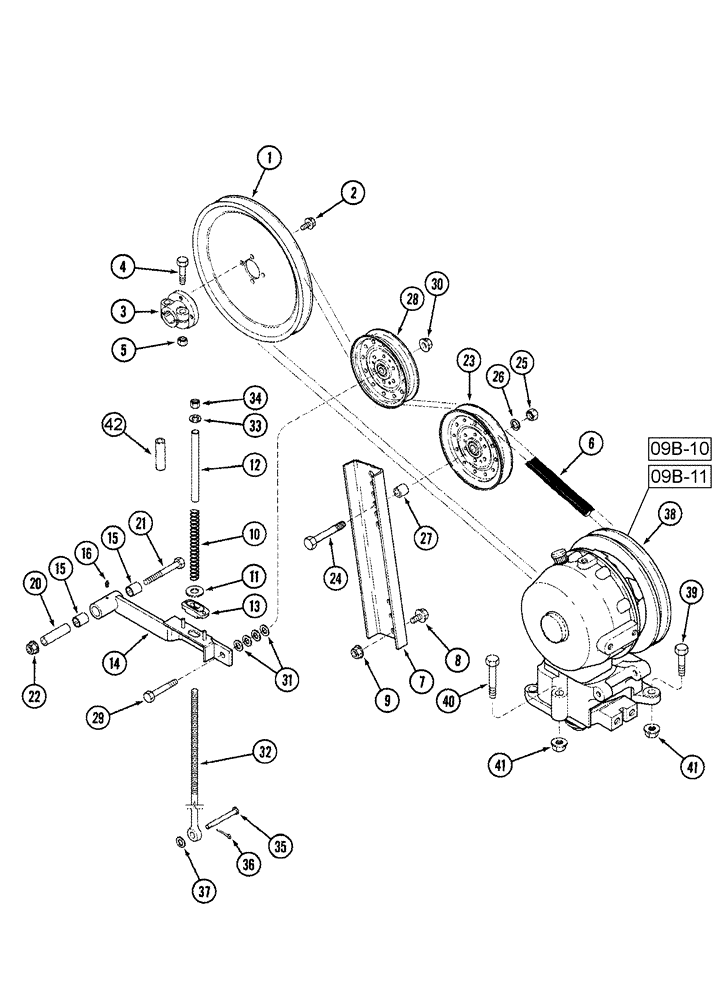

Запчасти Case IH 1020 (09B-09) - KNIFE DRIVE (09) - CHASSIS/ATTACHMENTS

1

125957A1

PULLEY

drive, 400 RPM, 213 mm OD (Standard on 1.5" knife)

1шт.

400 rpm

1шт.

1

126012A1

PULLEY

drive, 460 rpm, 245 mm OD

1шт.

460 rpm

1шт.

1

125959A1

PULLEY

drive, 500 rpm, 267 mm od

1шт.

500 rpm

1шт.

1

125962A1

PULLEY

drive, 600 RPM, 304mm od

1шт.

600 rpm

1шт.

2

133587A1

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, W/ Scotch Grip

hex flange, self-locking, special, 3/8 NC x 3/4"

4шт.

3

125966A1

HUB

auger and knife drive

1шт.

4

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

280431

NUT,1/2"-13, G5

2шт.

6

247430A1

BELT,22.33 mm W x 2666.69 mm L

Knife drive, Used with 400 rpm With 213 mm Pulley P/N 125957A1 (Standard On 1.5" Knife)

1шт.

6

247428A1

V-BELT,22.33 mm W x 2748.69 mm L

Knife drive, Used with 460 rpm, 500 rpm With 245 mm And 267 mm Pulleys P/N 126012A1 12559A1 Optional 1.5" Standard 3"

1шт.

6

319905A1

V-BELT,22.33 mm W x 2840.99 mm L

Knife drive, OC Used With 600 rpm With 304 mm Pulley P/N 125962A1 Optional 3"

1шт.

7

138435A1

SUPPORT

stationary idler pulley

1шт.

7

87450192

SUPPORT

stationary idler pully

1шт.

8

87034823

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

3шт.

9

86512371

SERRATED NUT,Flg, USR, 1/2"-13

3шт.

10

1315247C1

SPRING

idler tension

1шт.

11

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

12

178858A1

TUBE,15.87 mm OD

tightener spring

1шт.

13

1307259C2

GUIDE

finger

1шт.

14

138439A1

ARM

knife drive idler, Serial Range: -JJC0350294

1шт.

Includes 15, 16

1шт.

15

289588R1

BUSHING

2шт.

16

87414

LUBE NIPPLE,1/4" - 28

1шт.

20

1320826C1

BUSHING,12.95mm ID x 18.9mm OD x 70mm L

idler arm

1шт.

21

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

22

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

23

673214R91

PULLEY

7 5/16" (186 mm) OD, Serial Range: -JJC0350294

1шт.

24

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

25

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

26

12034871

WASHER

5/8"

1шт.

27

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

1шт.

28

1338456C1

IDLER

idler, 6" OD

1шт.

29

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

30

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

31

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

5шт.

32

1307324C1

EYEBOLT

knife drive tightener

1шт.

33

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

34

280431

NUT,1/2"-13, G5

3шт.

35

86624070

HEADED PIN,12.7mm OD x 38.1mm L

1шт.

36

394818

COTTER PIN,M5 x 25

1шт.

37

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

38

REF

INSTRUCTION

Box Assy

1шт.

See figure(s) 09B-10, 09B-11

1шт.

39

86508732

BOLT,5/8"-11 x 2.391" Cl 8

4шт.

40

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

1шт.

41

232-53110

FLANGE NUT,Flg, 5/8"-11

5шт.

42

188861A1

SPACER

5", idler spring, inner

1шт.
