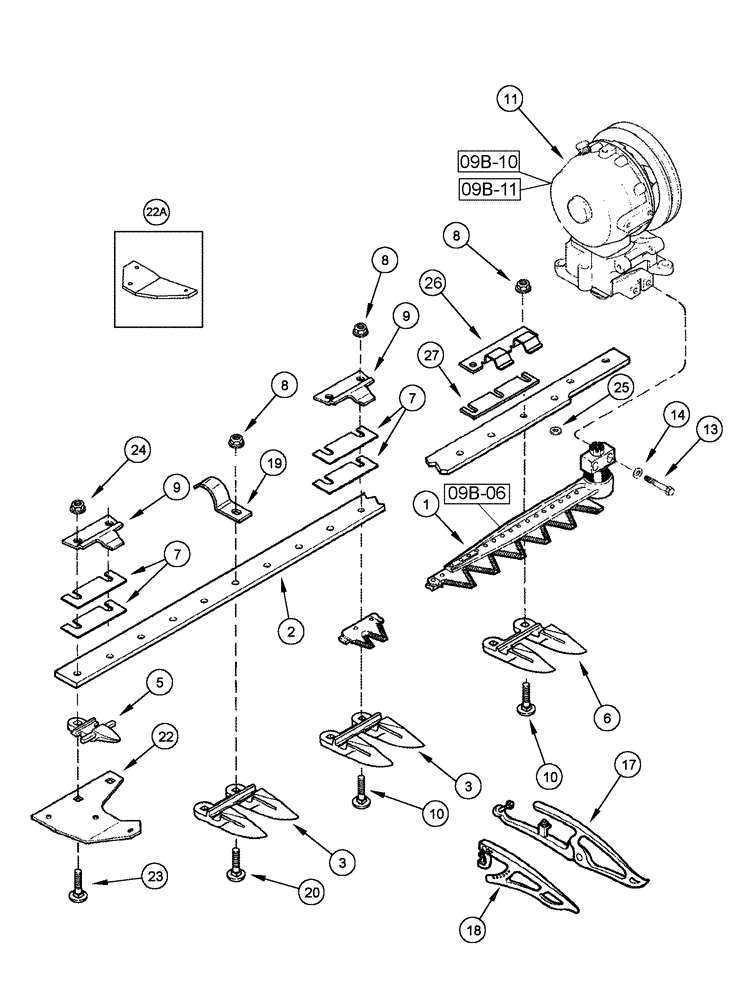

Запчасти Case IH 1020 (09B-02) - KNIFE GUARDS AND CUTTER BAR 3 INCH KNIFE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Knife Assy

1шт.

See figure 09B-06

1шт.

2

1307412C1

CUTTERBAR

15.0 foot

1шт.

2

1326813C1

CUTTERBAR

16.5 foot

1шт.

2

1307413C1

CUTTERBAR

17.5 foot, Serial Range: -JJC0350294

1шт.

2

1307414C1

CUTTERBAR

20.0 foot, Serial Range: -JJC0350294

1шт.

2

1307415C1

CUTTERBAR

22.5 foot, Serial Range: -JJC0350294

1шт.

2

1307416C1

CUTTERBAR

25.0 foot, Serial Range: -JJC0350294

1шт.

2

1307417C1

CUTTERBAR

30.0 foot, Serial Range: -JJC0350294

1шт.

3

1307299C2

GUARD

knife 3" double

1шт.

3

334305A1

GUARD

knife, 3" double

1шт.

5

1338269C1

GUARD

stub (15.0, 20.0, 25.0 and 30.0 foot)

2шт.

6

1326787C3

GUARD

knife 3" special LH, Serial Range: -JJC0350294

3шт.

7

1316039C1

SHIM

4 1/2' x 1 1/2" x .016"

1шт.

8

1313463C1

FLANGE NUT

hex small flange, 7/16" NC

1шт.

9

1307280C3

KNIFE CLIP

hold down, low arch

1шт.

10

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

11

REF

INSTRUCTION

Box Assy

1шт.

See figure(s) 09B-10, 09B-11

1шт.

13

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

2шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

17

608787R91

GRAIN LIFTER

1шт.

18

163417C91

GRAIN LIFTER

heavy duty

1шт.

19

1313160C2

CLAMP,32mm ID, 20mm Bolt Hole, J Type

1 1/2"

1шт.

20

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

1шт.

22

1326342C4

DEFLECTOR

crop, No Longer Available, Order 363164A1 and 363170A1 Shoe

1шт.

22

363164A1

DEFLECTOR

crop 3", Serial Range: -JJC0350294

1шт.

22a

363170A1

SKID/SHOE

polyskid RH crop deflector

1шт.

23

434-732

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2", Gr 5

2шт.

24

280980

NUT,7/16"-14, GC

2шт.

25

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

26

375900A1

CLIP, KNIFE

hold down LH 3"

1шт.

27

379093A1

SHIM,38.1mm OD x 0.7mm Thk

3" knife, head hold down

2шт.
