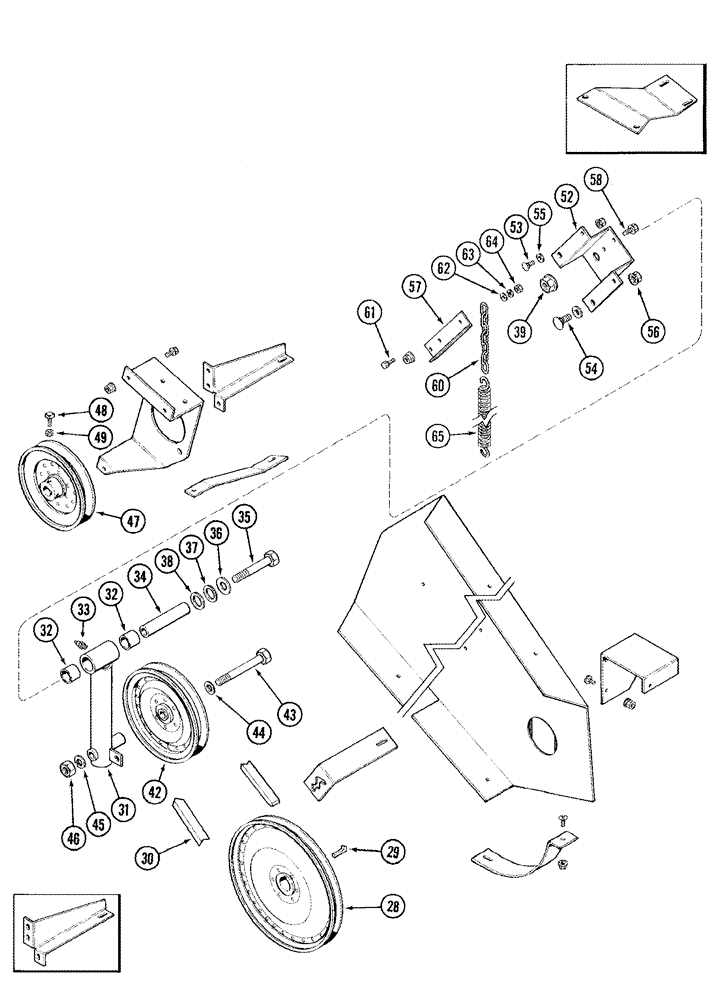

Запчасти Case IH 1020 (09A-18) - HYDRAULIC REEL DRIVE ATTACHMENT - 1440E, 1460E AND 1480E COMBINE (09) - CHASSIS/ATTACHMENTS

28

176562C2

PULLEY

drive, feeder jackshaft pump, 13-1/2" OD

1шт.

29

Q1497

KEY,Gib, 3/8" Sq x 2"

1шт.

30

197411C1

V-BELT,132" L

Reel drive

1шт.

1460E Combine with 47 inch feeder

1шт.

1440E Combine with 47 inch feeder

1шт.

30

197414C2

BELT,22.33 mm W x 3706.69 mm L

Reel drive

1шт.

1480E Combine with 54.5 inch feeder

1шт.

1460E Combine with 54.5 inch feeder

1шт.

31

195528C92

ARM

pump tightener

1шт.

Includes 32

1шт.

32

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

tightener arm

2шт.

33

87414

LUBE NIPPLE,1/4" - 28

1шт.

34

198410C1

SPACER

tightener arm

1шт.

35

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

36

495-81026

WASHER,21/32" x 1 1/2" x .060"

1шт.

37

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

1шт.

38

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

39

86977731

FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5

Flg, USR, 5/8"-11

1шт.

42

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

idler, belt, 8-3/4" OD

1шт.

43

424-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 2

1шт.

44

495-81175

WASHER,21/32" x 1" x .120"

1шт.

45

12034871

WASHER

5/8"

1шт.

46

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

47

193252C1

PULLEY

pump driven, 7.5" OD, 7/8" ID

1шт.

48

87616

SET SCREW,3/8" - 16 x 3/4"

1шт.

49

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

52

195526C1

SUPPORT

pivot anchor

1шт.

1460E Combine with 54.5 inch feeder

1шт.

1460E Combine with 47 inch feeder

1шт.

1440E Combine with 47 inch feeder

1шт.

52

195527C1

SUPPORT

pivot anchor

1шт.

1460E Combine with 54.5 inch feeder

1шт.

53

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

54

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

1шт.

55

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

1шт.

56

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

1шт.

57

195531C1

SUPPORT

spring anchor

1шт.

58

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

1шт.

60

167570C1

CHAIN,203.2mm L

finger stop

1шт.

61

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

62

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

63

80682

LOCK WASHER,1/4"

1шт.

64

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

65

P303

SPRING

reel drive idler pulley arm

1шт.
