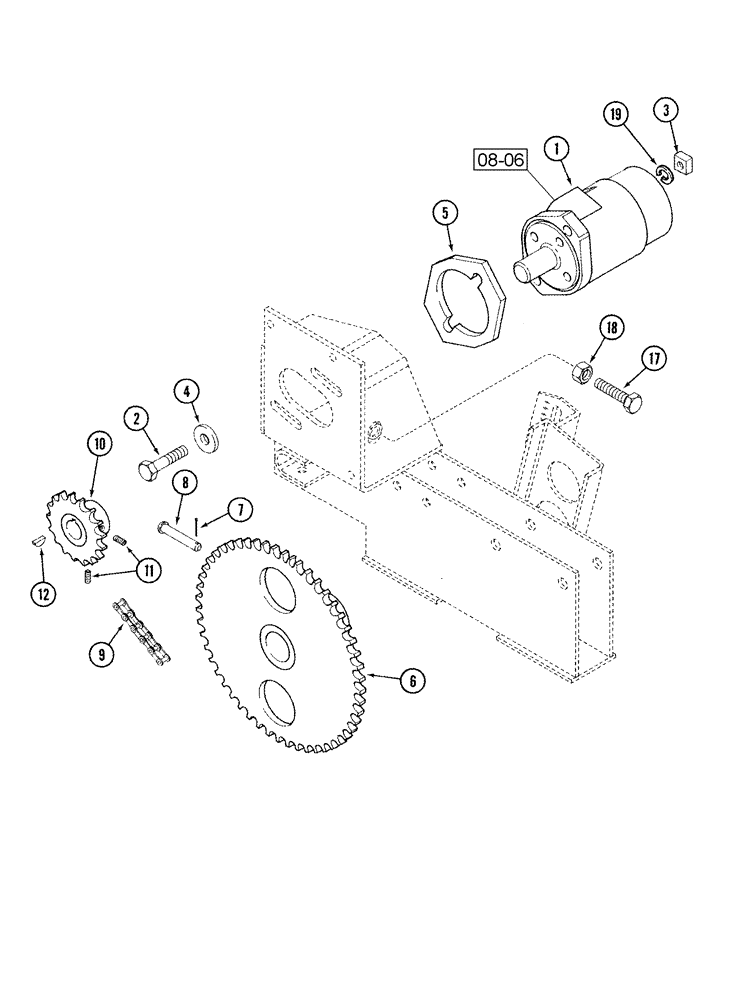

Запчасти Case IH 1020 (09A-14) - REEL DRIVE PICKUP REEL (09) - CHASSIS/ATTACHMENTS

1

130409A1

MOTOR, HYDRAULIC

reel drive

1шт.

See figure 08-06

1шт.

87036557R

REMAN-HYD MOTOR

1020 P.I.N. JJC0315001 TO JJC0350294 (1/04-10/04); Reman for new PN 130409A1

1шт.

87036557C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

3

129-857

SQUARE NUT,Sq, 1/2"-13

2шт.

4

86624187

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

2шт.

5

1308371C1

SHIM

bar, motor

1шт.

5

1308371C2

SHIM,86mm ID x 110mm OD x 4.6mm Thk

hydraulic reel drive motor

1шт.

6

87036543

SPROCKET

51 tooth, Serial Range: -JJC0350294

1шт.

7

280251

COTTER PIN,3/32" OD x 1" OAL

2шт.

8

87036559

CLEVIS PIN,7/16" x 2.781"

, Serial Range: -JJC0350294

2шт.

9

NSS

NOT SOLD SEPARAT

Chain Assy

1шт.

Use 67 links of 1791D, 1 x 241-1315, 2 x 241-1715

1шт.

9

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller, #50 (10 foot bulk)

1шт.

9

87034815

LINK,15.88mm Pitch

#50 single pitch

1шт.

9

241-1715

LINK,15.88mm Pitch

#50 single pitch offset

2шт.

10

129967A1

SPROCKET

drive, 17 tooth, Serial Range: -JJC0350294

1шт.

11

484-1386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

2шт.

12

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

17

280234

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

1шт.

18

280431

NUT,1/2"-13, G5

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

2шт.
