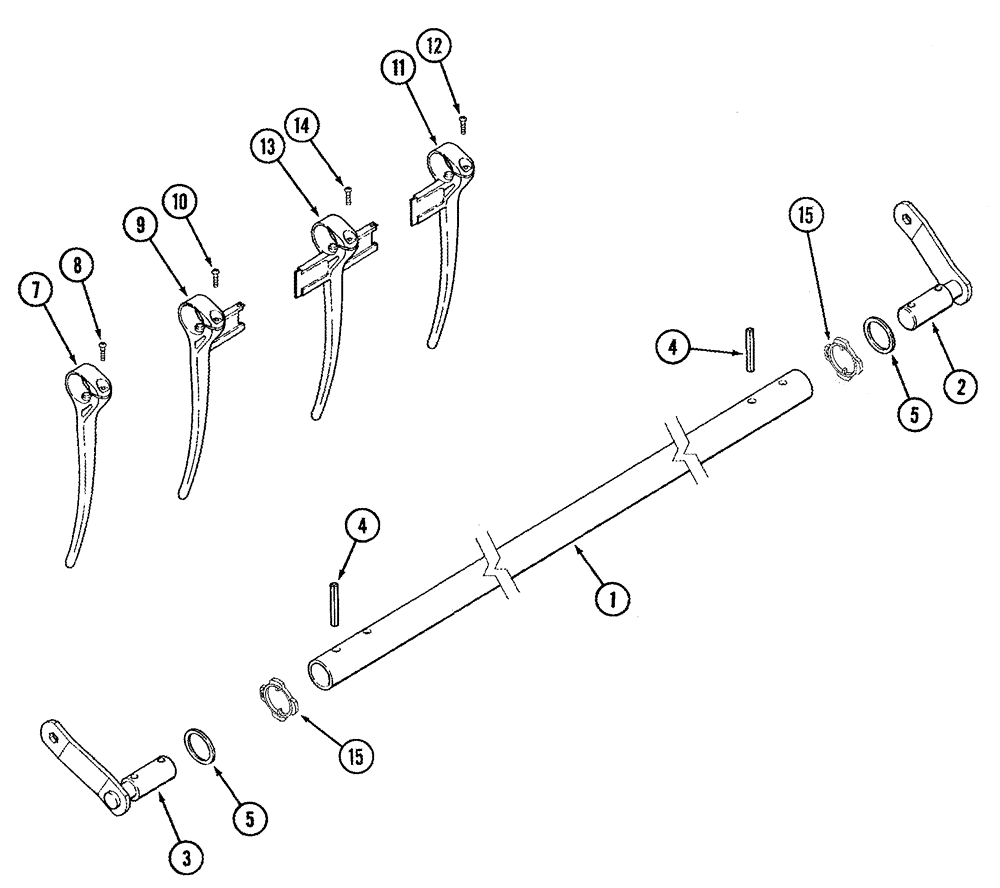

Запчасти Case IH 1020 (09A-10) - PICKUP REEL - BAT AND PLASTIC TINES (FINGERS) - BSN JJC0324999 (09) - CHASSIS/ATTACHMENTS

1

1989429C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

tine support (15.0 foot)

6шт.

1

1989430C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

tine support (16.5 foot)

6шт.

1

1989431C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

tine support (17.5 foot)

6шт.

1

1994813C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

tine support (20.0 foot)

6шт.

1

1347080C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

tine support (22.5 foot)

6шт.

1

1347081C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

tine support (25.0 foot)

6шт.

1

1347082C2

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

tine support (30.0 foot)

6шт.

2

1347094C1

BRACKET

crank arm, LH

6шт.

3

1347095C1

ARM

crank arm, RH (double eccentric)

6шт.

4

838-1840

LOCK PIN,8mm OD x 40mm L, Slotted

1шт.

5

1989468C1

WASHER

35.6 x 46 x 2.0 mm

1шт.

6

1989441C1

KIT

tine, end

1шт.

Not Shown

1шт.

Includes 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Tine, End

6шт.

8

126173A1

SELF-TAP SCREW

hex washer head, slotted, special, 3.5 x 1.3 x 16 mm

6шт.

9a

1989439C1

KIT

tine, RH

1шт.

Not Shown

1шт.

Includes 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Tine, Right Hand Bat

6шт.

10

126173A1

SELF-TAP SCREW

hex washer head, slotted, special, 3.5 x 1.3 x 16 mm

6шт.

11a

1989440C1

KIT

tine, LH

1шт.

Not Shown

1шт.

Includes 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Tine, Left Hand Bat

6шт.

12

126173A1

SELF-TAP SCREW

hex washer head, slotted, special, 3.5 x 1.3 x 16 mm

6шт.

13a

1989438C1

KIT

tine, full

1шт.

Not Shown

1шт.

Includes 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Tine, Full Bat

10шт.

14

126173A1

SELF-TAP SCREW

hex washer head, slotted, special, 3.5 x 1.3 x 16 mm

10шт.

15

126748A1

THRUST WASHER

plastic

1шт.
