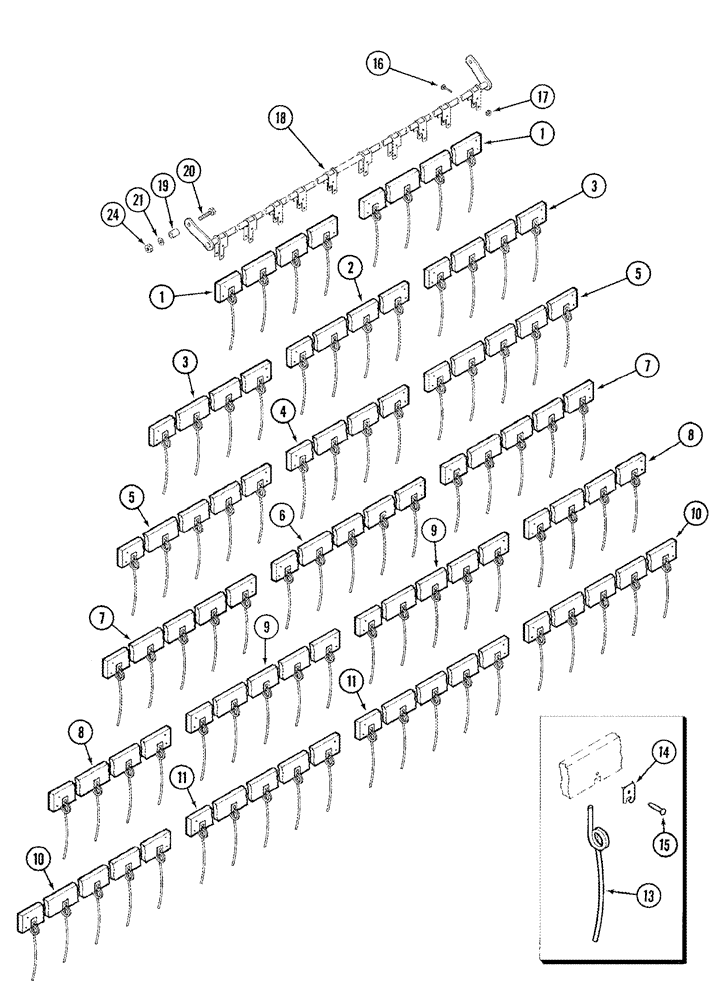

Запчасти Case IH 1020 (09A-08) - PICKUP REEL BAT AND STEEL TINE ASSY - BSN JJC0324999 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1326605C91
BAT
with steel tines (15.0 foot)
12шт.
Includes 13, 14, 15
1шт.
2
1316258C91
BAT
with steel tines (17.5 foot)
6шт.
Includes 13, 14, 15
1шт.
3
1316259C91
BAT
with steel tines (17.5 and 20.0 foot)
12шт.
Includes 13, 14, 15
1шт.
4
1316259C91
BAT
with steel tines (17.5 and 20.0 foot)
6шт.
Includes 13, 14, 15
1шт.
5
1316260C91
BAT
with steel tines (20.0 foot)
12шт.
Includes 13, 14, 15
1шт.
6
1316265C91
BAT
with steel tines (22.5 foot)
6шт.
Includes 13, 14, 15
1шт.
7
185864C91
BAT
with steel tines (22.5 foot)
12шт.
Includes 13, 14, 15
1шт.
8
598170R91
BAT
with steel tines (25.0 foot)
12шт.
Includes 13, 14, 15
1шт.
9
167676C91
BAT
with steel tines (25.0 foot)
12шт.
Includes 13, 14, 15
1шт.
10
1316264C91
BAT
with steel tines (30.0 foot)
12шт.
Includes 13, 14, 15
1шт.
11
1316265C91
BAT
with steel tines (22.5 foot)
12шт.
Includes 13, 14, 15
1шт.
12
598188R91
BAT
with steel tines (16.5 foot)
12шт.
Not Shown
1шт.
Includes 13, 14, 15
1шт.
13
598171R1
TINE,Coiled, 1 Prong, 283mm L
tooth
1шт.
14
592616R1
CLIP
1шт.
15
23055R1
RIVET,Tr Hd, 3/16" x 1"
1шт.
17
230-4114
NUT,1/4"-20, GA
1шт.
18
1326604C1
SHAFT
bat (15.0 foot)
6шт.
18
1326842C1
SHAFT
bat (16.5 foot)
6шт.
18
1316267C1
SHAFT
bat (17.5 foot)
6шт.
18
1316268C1
SHAFT
bat (20.0 foot)
6шт.
18
1316269C1
SHAFT
bat (22.5 foot)
6шт.
18
1316270C1
SHAFT
bat (25.0 foot)
6шт.
18
1316271C1
SHAFT
bat (30.0 foot)
6шт.
19
1316568C1
SPACER
.51 X .84 X 1.12 tube
12шт.
52 Inch Reel With Steel Tines
1шт.
20
9706716
BOLT,Hex, 1/2" - 13 x 2", Gr 5
12шт.
52 Inch Reel With Steel Tines
1шт.
21
495-81024
WASHER,17/32" x 1 1/4" x .060"
12шт.
52 Inch Reel With Steel Tines
1шт.
24
86992215
LOCK NUT,1/2"-13, GC
12шт.
52 Inch Reel With Steel Tines
1шт.
Выбрано товаров: 45
