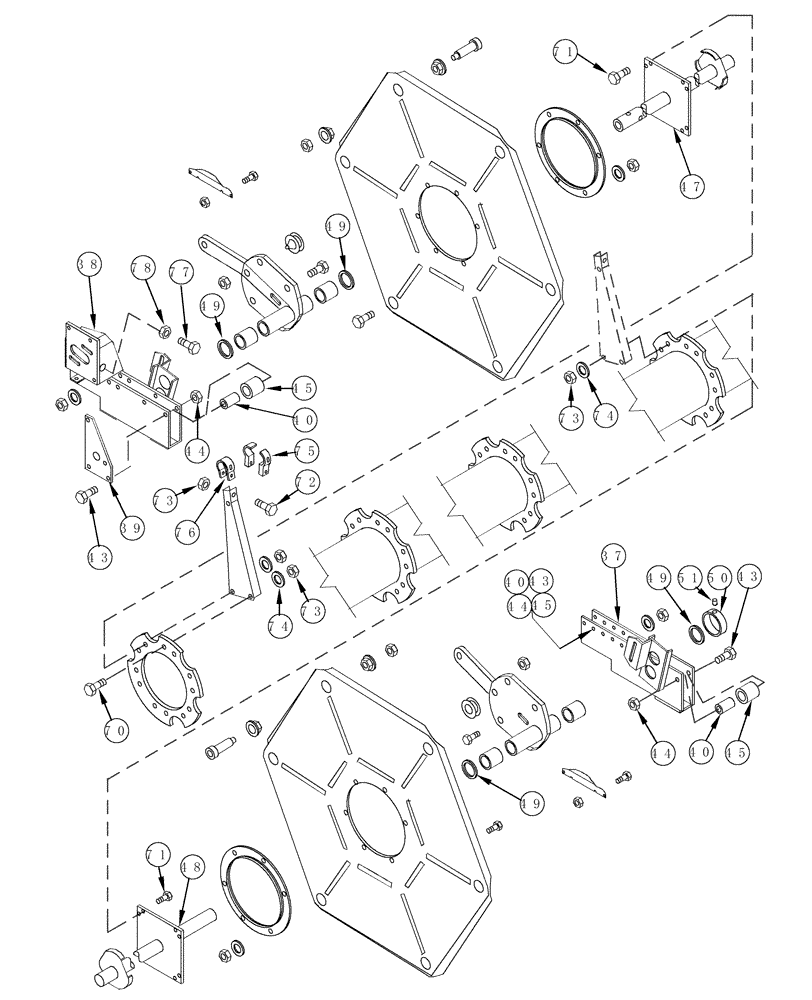

Запчасти Case IH 1020 (09A-06) - PICKUP REEL WITH PLASTIC TINES - 22.5, 25.0 AND 30.0 FOOT HEADERS - BSN JJC0325000 (09) - CHASSIS/ATTACHMENTS

37

277363A1

BRACKET

pickup reel support, LH

1шт.

38

277358A2

BRACKET

pickup reel support, RH

1шт.

39

280262A1

SUPPORT

shield, outer

1шт.

40

280505A1

SPACER

3/4"

5шт.

43

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

5шт.

44

86992215

LOCK NUT,1/2"-13, GC

5шт.

45

1316328C1

SHIFTER ROLLER

reel support

4шт.

47

1989428C2

SHAFT

driving end

1шт.

48

1989425C2

SHAFT

driven end

1шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

4шт.

50

114943A1

COLLAR

locking

1шт.

Includes 51

1шт.

51

878-1106

SET SCREW,Hex Skt, M10 x 6mm, Cup Pt

2шт.

70

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

71

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

72

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

73

87030549

NUT,M10 x 1.5, Cl 10

1шт.

74

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

75

1347084C1

CLAMP,50.8 mm ID x 25.4 mm

reel arm

1шт.

76

1347085C1

STRAP

bearing

1шт.

77

280234

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

1шт.

78

280431

NUT,1/2"-13, G5

1шт.
