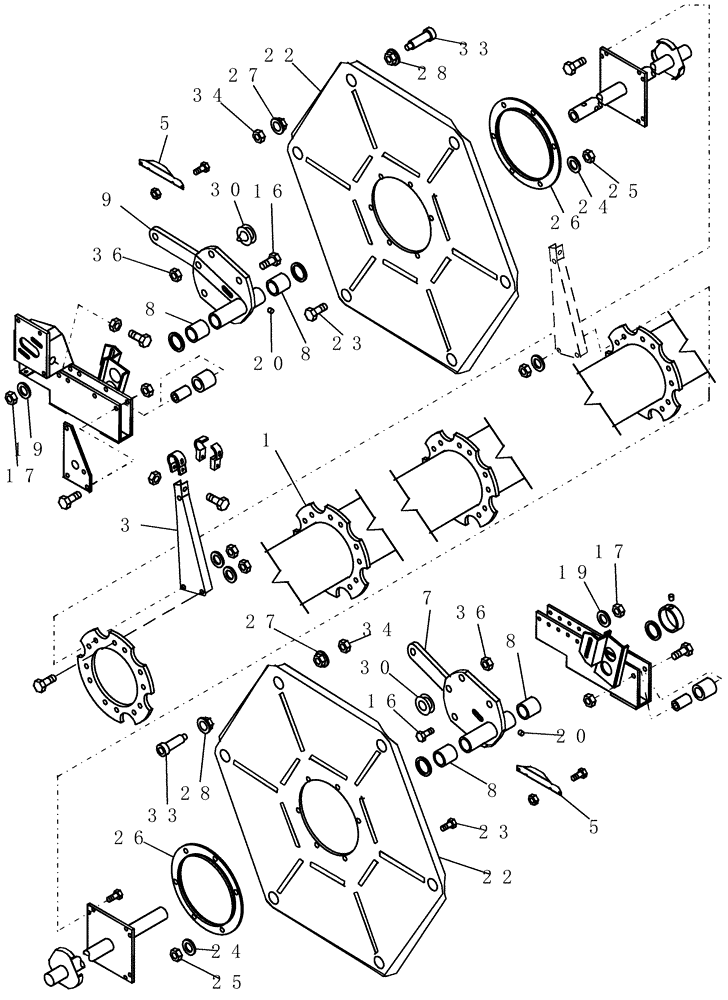

Запчасти Case IH 1020 (09A-05) - PICKUP REEL WITH PLASTIC TINES - 22.5, 25.0 AND 30.0 FOOT HEADERS - BSN JJC0325000 (09) - CHASSIS/ATTACHMENTS

1

1347091C1

SHAFT

center, tube (22.5 foot)

1шт.

1

1347092C1

SHAFT

center, tube (25.0 foot)

1шт.

1

1347093C1

SHAFT

center, tube (30.0 foot)

1шт.

3

1347083C1

ARM

reel

1шт.

5

292108A1

SHIELD

eccentric roller plate HCC

2шт.

7

114938A2

FRAME

eccentric roller

1шт.

8

167666C1

BUSHING

roller frame

4шт.

9

175571A3

HOUSING

eccentric roller

1шт.

16

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

17

337475

NUT,M12, Cl 10

2шт.

19

114944A1

BELLEVILLE WASHER

belleville, 12 mm

2шт.

20

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

2шт.

21

253430A1

SHIELD

Assembly, Qty 1 shield & 6 bearing/fastener sets

1шт.

Not Shown

1шт.

Includes 22 - 28

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

2шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

24

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

12шт.

25

43362

NUT,M8 x 1.25, Cl 10

12шт.

26

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

2шт.

27

114951A1

BEARING,52.4 mm OD x 14.5 mm

CUP tapered roller bearing (Female thread)

12шт.

28

114952A1

BEARING,52.4 mm OD x 25.7 mm

CONE tapered roller bearing (Male thread)

12шт.

30

114941A1

BALL BEARING,38.23mm Idler Dia x 57.15mm OD x 44.5mm W

6шт.

33

114942A1

SCREW

socket head, shoulder, special

12шт.

34

100038

NUT,M12 x 1.75, Cl 8

12шт.

36

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.
