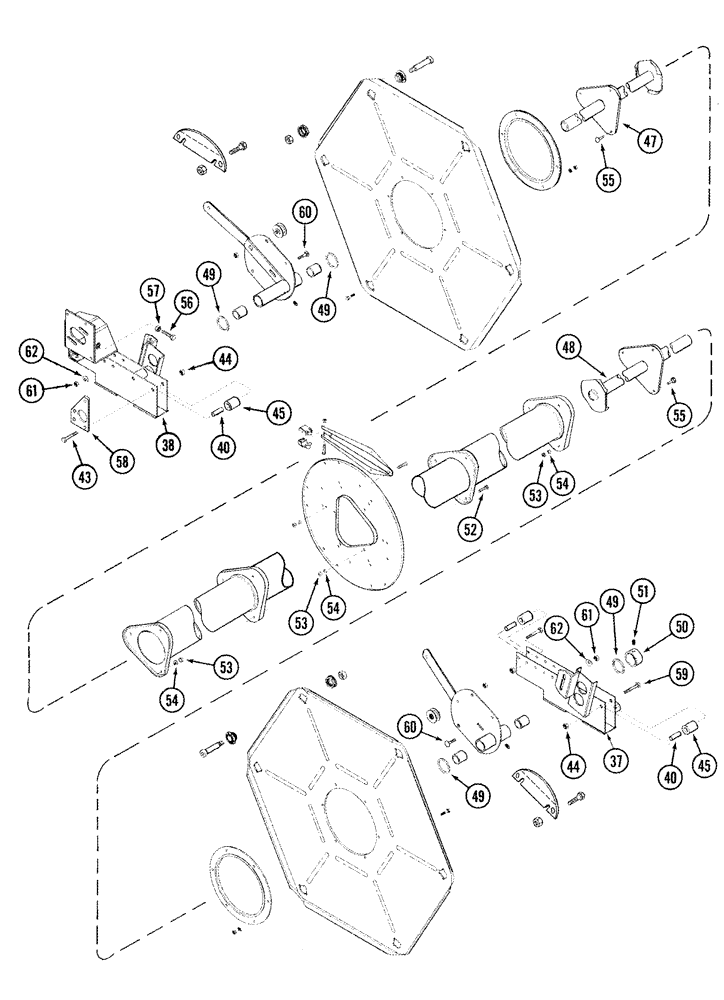

Запчасти Case IH 1020 (09A-02) - PICKUP REEL 6 BAT WITH STEEL TINES - BSN JJC0325000 (09) - CHASSIS/ATTACHMENTS

37

277363A1

BRACKET

pickup reel support, LH

1шт.

38

277361A2

BRACKET

pickup reel support, RH

1шт.

40

280505A1

SPACER

3/4"

5шт.

43

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

5шт.

44

86992215

LOCK NUT,1/2"-13, GC

5шт.

45

1316328C1

SHIFTER ROLLER

reel support

4шт.

47

185519C1

SHAFT

driving end (15.0 and 17.5 foot)

1шт.

47

185520C1

SHAFT

driving end (20.0 and 22.5 foot)

1шт.

47

180134C1

SHAFT

driving end (25.0 and 30.0 foot)

1шт.

48

185522C1

SHAFT

driven end (15.0 and 17.5 foot)

1шт.

48

185523C1

SHAFT

driven end (20.0 and 22.5 Foot)

1шт.

48

180135C1

SHAFT

driven end (25.0 and 30.0 foot)

1шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

4шт.

50

114943A1

COLLAR

locking

1шт.

Includes 51

1шт.

51

878-1106

SET SCREW,Hex Skt, M10 x 6mm, Cup Pt

2шт.

52

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

53

88902

NUT,3/8"-16

1шт.

54

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

55

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

56

280234

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

1шт.

57

280431

NUT,1/2"-13, G5

1шт.

58

280262A1

SUPPORT

shield, outer

1шт.

59

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

60

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

61

337475

NUT,M12, Cl 10

2шт.

62

114944A1

BELLEVILLE WASHER

belleville, 12 mm

2шт.
