Запчасти Case IH 1020 (08-15) - REEL DRIVE VALVE (08) - HYDRAULICS

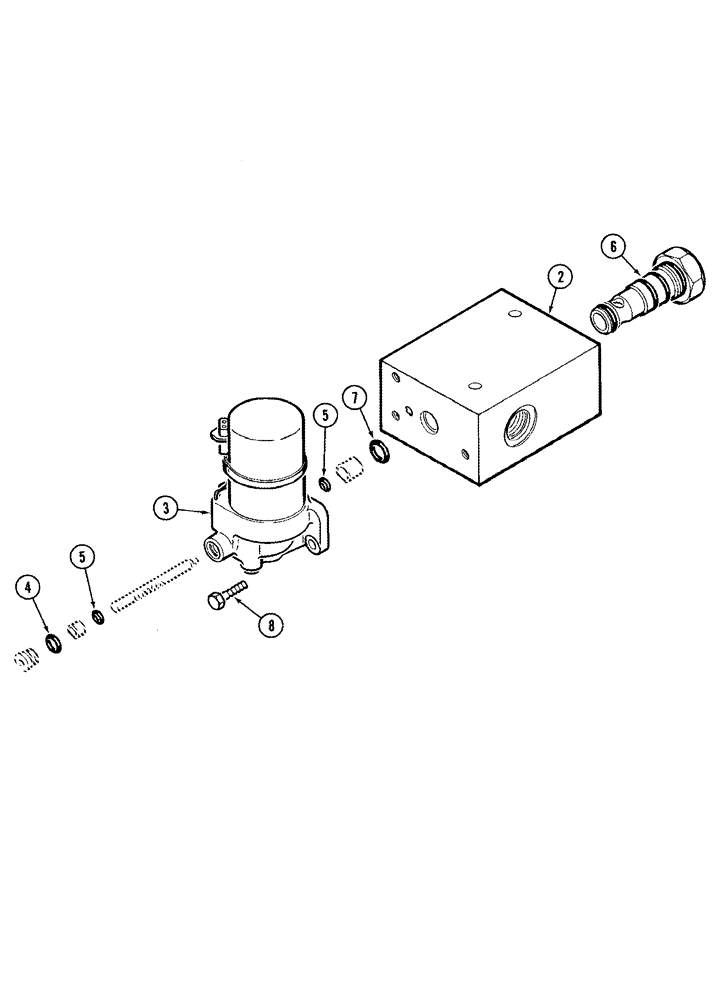

Схема запчастей Case IH 1020 - (08-15) - REEL DRIVE VALVE (08) - HYDRAULICS
3
2
5
8
5
6
4
7

Артикул

Название

Примечание

Количество

0

1282369C91

VALVE

reel drive

1шт.

Includes 2 - 8

1шт.

0

1282369C92

VALVE

reel drive

1шт.

Includes 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

1301336C2

MOTOR, ELECTRIC

valve

1шт.

Includes 4, 5

1шт.

3

1301336C3

MOTOR, ELECTRIC

with bracket

1шт.

Includes 4, 5

1шт.

4

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

6

1301996C1

VALVE

compensator

1шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

8

86533411

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

3шт.

Выбрано товаров: 14
