Запчасти Case IH 1020 (08-14) - REEL DRIVE SYSTEM 1440E, 1460E AND 1480E COMBINE (08) - HYDRAULICS

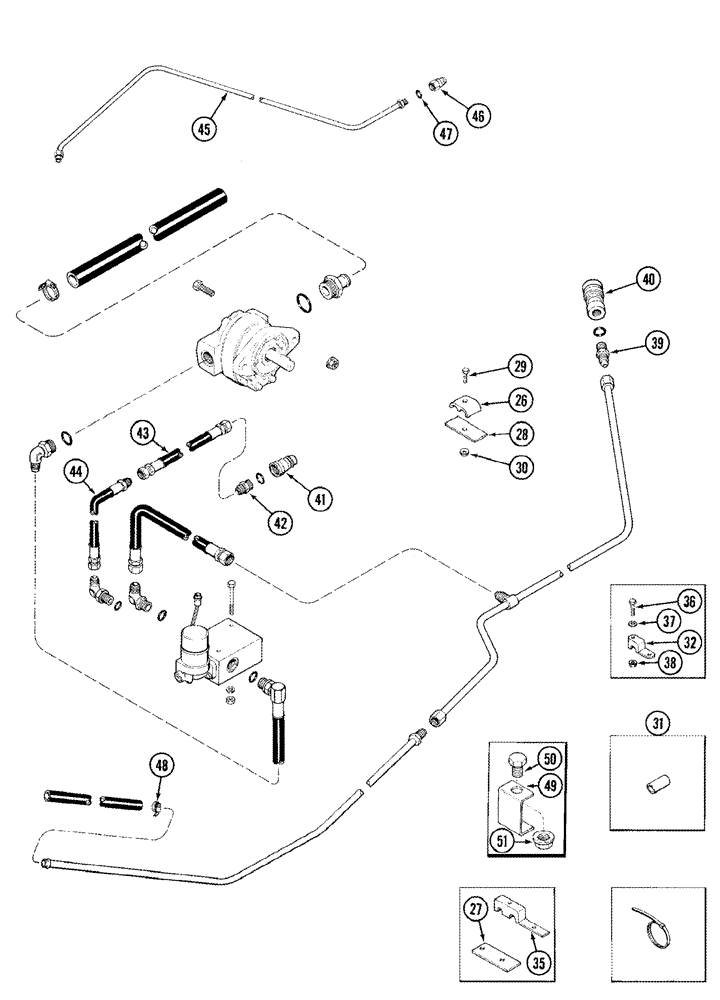

Схема запчастей Case IH 1020 - (08-14) - REEL DRIVE SYSTEM 1440E, 1460E AND 1480E COMBINE (08) - HYDRAULICS
42
39
32
37
35
38
51
50
45
47
28
48
31
40
49
43
44
41
27
26
29
36
30
46

Артикул

Название

Примечание

Количество

26

165601C1

CLAMP

reservoir drain tube, retaining, 13/32" diameter hole

1шт.

26

165602C1

CLAMP

retaining, 11/32" diameter hole

1шт.

27

196868C2

SUPPORT

plate

1шт.

1460E Combine with 54.5 inch feeder

1шт.

1460E Combine with 47 inch feeder

1шт.

1440E Combine with 47 inch feeder

1шт.

28

573186R1

PLATE

support, tube

1шт.

1480E Combine with 54.5 inch feeder

1шт.

29

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

29

424-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 2

1шт.

30

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

30

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

31

163490C1

RUBBER INSULATOR

3/8 ID x 1 13/64" long

1шт.

31

163491C1

RUBBER INSULATOR

1/2 ID x 1 13/64" long

1шт.

31

163492C1

RUBBER INSULATOR

5/8 ID x 1 13/64" long, tube clamp

1шт.

32

183821C1

CLAMP

tube, single, 3/8" OD tube

1шт.

32

183822C1

CLAMP

5/8" OD

1шт.

35

121714C1

CLAMP

3/4 x 5/8

1шт.

36

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

36

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

37

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

38

523282

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

39

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

1шт.

40

395150R91

COUPLING, QUICK, FEM

self sealing

1шт.

Alternate with A177478

1шт.

40

A177478

COUPLING, QUICK, FEM

1шт.

Alternate with 395150R91

1шт.

41

395149R1

QUICK MALE COUPLING

male, 7/8 inch NF

1шт.

Alternate with 1272399C2

1шт.

41

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

1шт.

Alternate with 395149R1

1шт.

42

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

43

196878C1

HOSE

1422 mm (56") long, hydraulic, 3/8 ID

1шт.

1460E Combine with 47 inch feeder

1шт.

1440E Combine with 47 inch feeder

1шт.

43

179411C1

HOSE

1549 mm (61") long, hydraulic, 3/8 ID

1шт.

1480E Combine with 54.5 inch feeder

1шт.

1460E Combine with 54.5 inch feeder

1шт.

44

1317169C1

HOSE

686 mm (27") long, hydraulic, 3/8 ID

1шт.

45

1312410C1

HYD TUBE

reel lift

1шт.

1460E Combine with 54.5 inch feeder

1шт.

1460E Combine with 47 inch feeder

1шт.

1440E Combine with 47 inch feeder

1шт.

46

187562C1

QUICK MALE COUPLING

9/16"-18

1шт.

47

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

48

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

49

1312409C1

SUPPORT

pipe

1шт.

50

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

51

43435

FLANGE NUT,Hex, M10 x 1.5

1шт.

Выбрано товаров: 49
