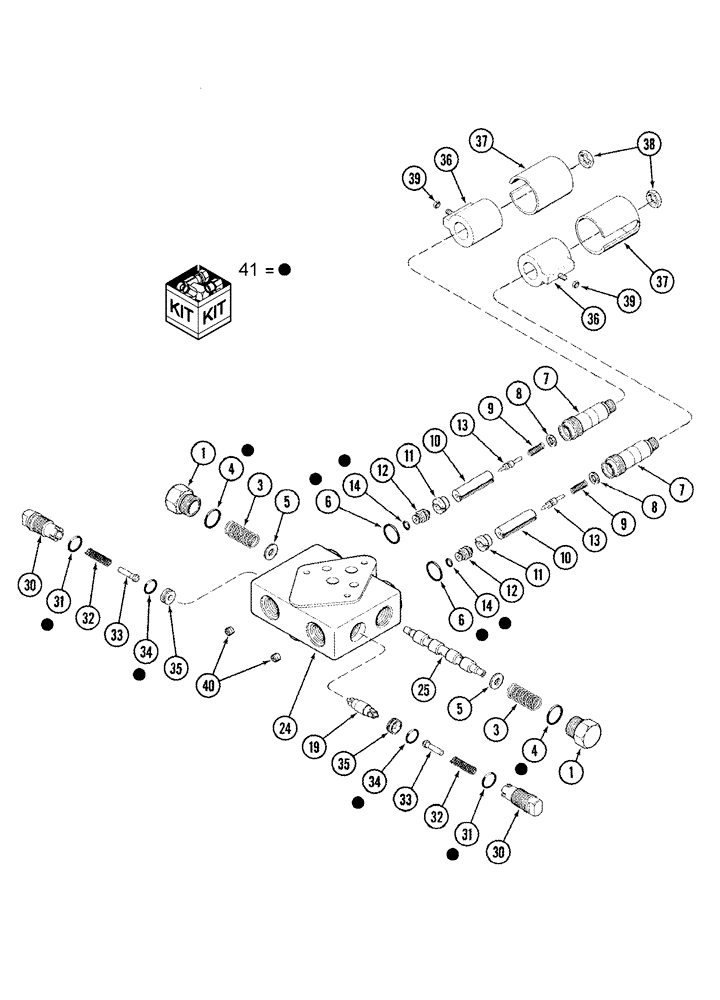

Запчасти Case IH 1020 (08-12) - CONTROL VALVE ASSY - REEL FORE AND AFT ATTACHMENT - 1400 SERIES COMBINES (08) - HYDRAULICS

0

124857A1

VALVE

double piloted

1шт.

Includes 1 - 39

1шт.

1

100475A1

PLUG

end cap

2шт.

3

100474A1

SPRING

spool centering return

2шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

1301687C1

WASHER

spring

2шт.

6

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

7

1301627C3

SLEEVE

poppet

2шт.

8

1301624C1

BUSHING

pole

2шт.

9

1301640C1

SPRING

poppet

2шт.

10

1301648C1

ARMATURE

bushing

2шт.

11

1301624C1

BUSHING

pole

2шт.

12

1301625C1

ORIFICE

piston

2шт.

13

110550A1

VALVE POPPET

2шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

19

124777A1

SPOOL

shuttle

1шт.

24

NSS

NOT SOLD SEPARAT

Body

1шт.

25

NSS

NOT SOLD SEPARAT

Spool

1шт.

30

124775A1

CAP

check valve

1шт.

31

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

32

1272887C1

SPRING

poppet, spool

1шт.

33

124771A1

VALVE POPPET

spool

1шт.

34

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

1267163C1

WASHER

washer

1шт.

36

1301633C1

COIL

solenoid

2шт.

37

1301632C1

CAP

cover, coil

2шт.

38

107825

NUT,Stamped, 1/2"-20

2шт.

39

225-20210

NUT,#10-32, Brass

2шт.

40

1301637C1

ORIFICE

valve

2шт.

41

1282278C2

SEAL KIT

valve

1шт.

Includes 4, 6, 14, 31, 34

1шт.
