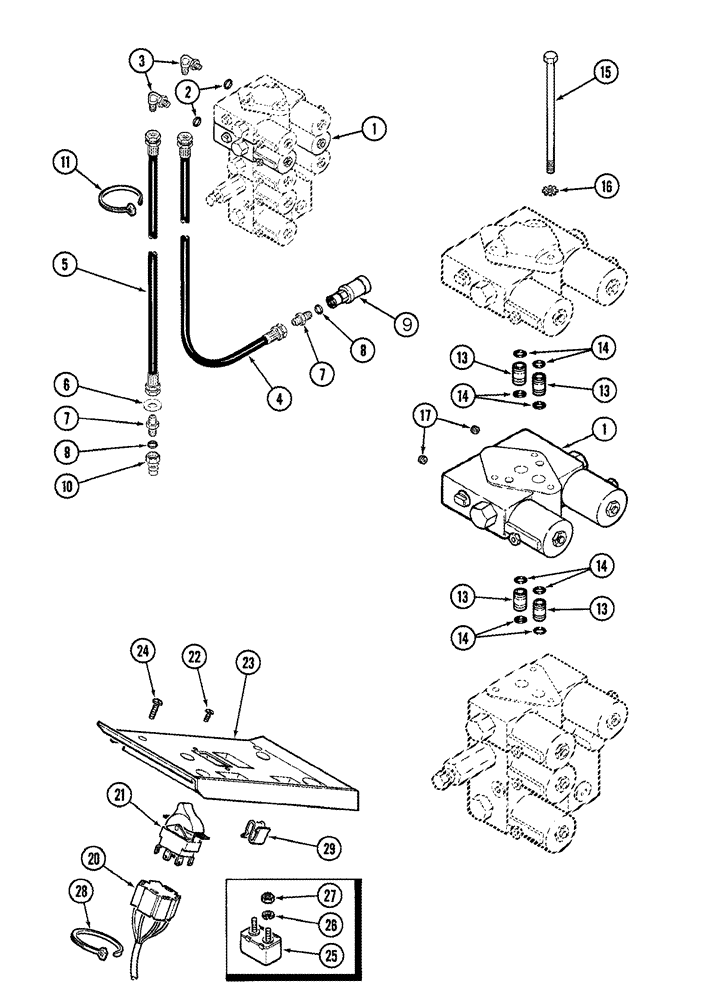

Запчасти Case IH 1020 (08-11) - REEL FORE AND AFT ATTACHMENT 1400 SERIES COMBINES (08) - HYDRAULICS

0

1957287C2

PACKAGE

hydraulic reel fore and aft completing

1шт.

Includes 1 - 29

1шт.

1

124857A1

VALVE

double piloted

1шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

4

1321591C1

HOSE

reel, 2400 mm (94 1/2") long, 5/16 ID

1шт.

5

1284369C1

HYDRAULIC HOSE

3/8" x 130" fl

1шт.

6

1541792C1

WASHER

red, special

1шт.

7

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

9

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

10

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

1шт.

11

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

5шт.

13

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

through

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

15

424-496

BOLT,Hex, 1/4" - 20 x 6", Gr 2

3шт.

16

493-41026

LOCK WASHER,Ext Tooth, 1/4"

3шт.

17

1301637C1

ORIFICE

valve

2шт.

20

1866277R1

ARMATURE

wiring

1шт.

21

1301175C1

SWITCH

fore and aft

1шт.

22

281007

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1/2"

2шт.

23

1301940C3

COVER

console extension

1шт.

24

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

4шт.

25

262965C91

BREAKER

circuit, 10 ampere

1шт.

26

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

27

87825

NUT,#10-32

2шт.

28

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

29

537024R1

CLIP

edge

1шт.
