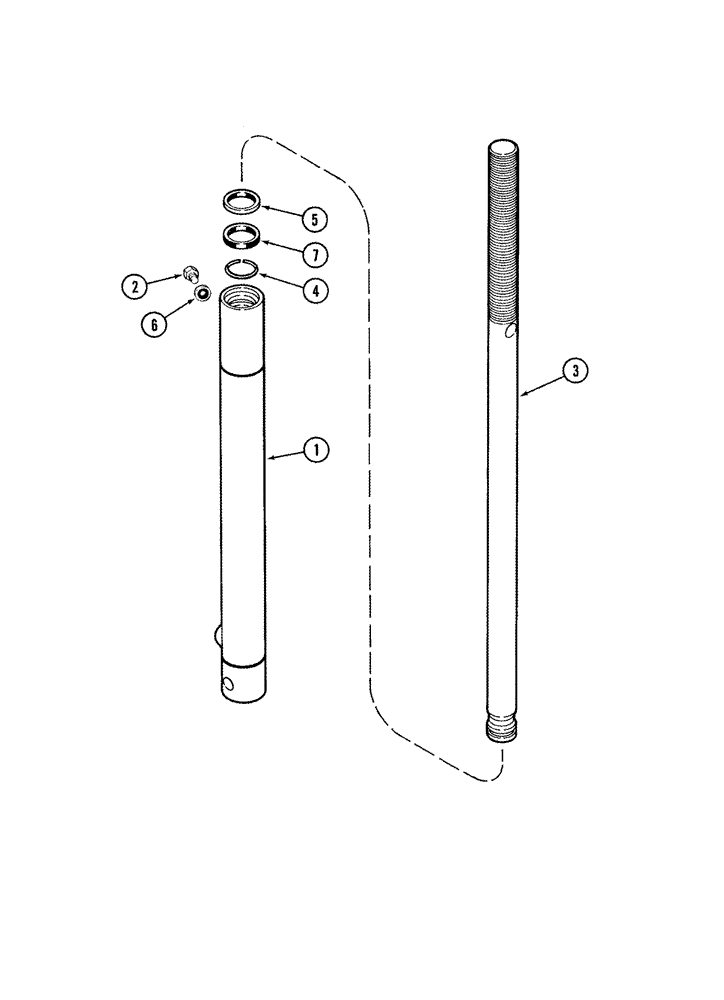

Запчасти Case IH 1020 (08-09) - REEL LIFT SLAVE CYLINDER (08) - HYDRAULICS

0

128726A1

HYDRAULIC CYLINDER

1 x 9 3/8", Reel Lift Slave, Serial Range: -JJC0350294

1шт.

Includes 1 - 7

1шт.

128726A2R

REMAN-HYD CYLINDER

1020 P.I.N. JJC0315001 TO JJC0350294, Serial Range: -JJC0350294 (1/04-10/04), Reman for New PN 128726A1

1шт.

128726A2C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

463-1104

SCREW,Hex Hd, #10-24 x 1/4"

1шт.

3

128727A1

PISTON ROD

1шт.

4

145190C1

SNAP RING

1шт.

5-7

532531R92

SEAL KIT

cylinder

1шт.

Includes 5 - 7

1шт.

5

532773R1

WIPER SEAL

rod

1шт.

6

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

rubber bonded

1шт.

7

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

rod

1шт.

Use with cylinder 128726A1

1шт.

7

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

rod

1шт.

Use with cylinder 87045528

1шт.
