Запчасти Case IH 1020 (08-08) - REEL LIFT MASTER CYLINDER (08) - HYDRAULICS

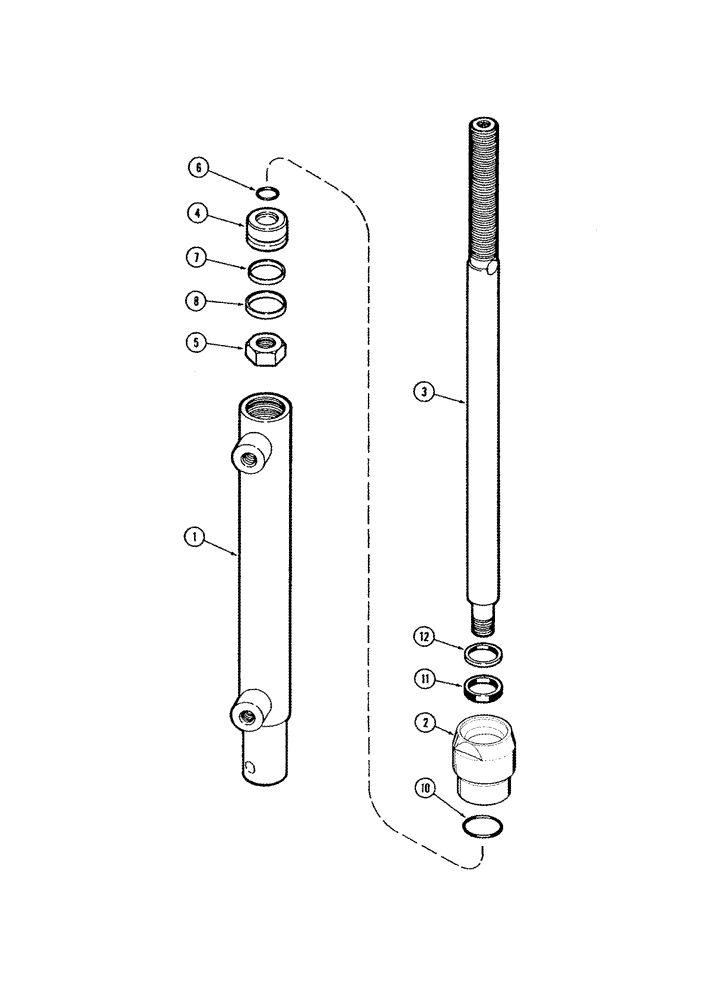

Схема запчастей Case IH 1020 - (08-08) - REEL LIFT MASTER CYLINDER (08) - HYDRAULICS
3
6
12
1
11
10
8
2
5
4
7

Артикул

Название

Примечание

Количество

0

128723A2

HYDRAULIC CYLINDER

1 1/2" x 9 3/8", Reel Lift Master, Serial Range: -JJC0350294

1шт.

Includes 1 - 12

1шт.

128723A3R

REMAN-HYD CYLINDER

1020 (P.I.N. JJC0315001 TO JJC0350294), Serial Range: -JJC0350294 (1/04-10/04), Reman for New PN 128723A2

1шт.

128723A3C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

547384R2

CYLINDER HEAD

front

1шт.

3

128724A1

PISTON ROD

1шт.

4

547333R3

PISTON

1шт.

5

548033R1

JAM NUT

hex jam, 3/4"-16

1шт.

6-12

547388R94

SEAL KIT

cylinder

1шт.

Includes 6 - 12

1шт.

6

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

7

238-5123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

8

547383R2

SEALING RING,35.41mm ID x 38.71mm OD x 3.17mm Thk

ring

1шт.

10

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1шт.

11

1272317C1

SEAL,28.7mm ID x 34.52mm OD x 4.52mm Thk

rod

1шт.

12

564808R91

WIPER

seal, shaft

1шт.

Выбрано товаров: 17
