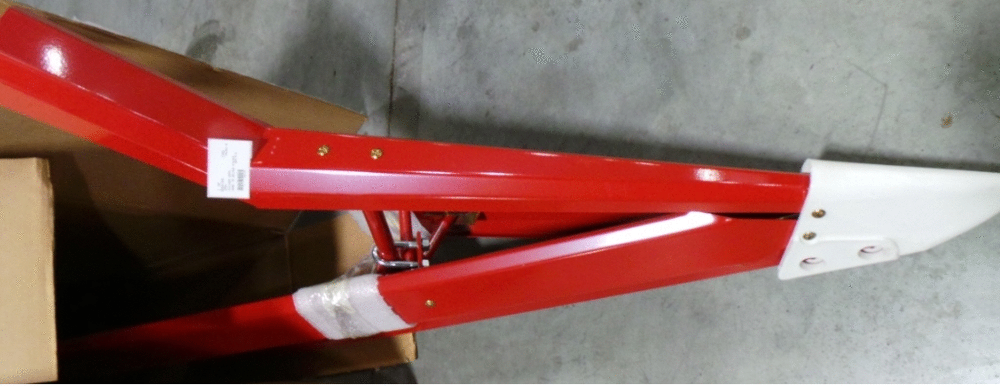

Запчасти Case IH 1020 (09D-33[01]) - KIT RH CROP DIVIDER 1020 HEADER (09) - CHASSIS/ATTACHMENTS

1

B94155

DIVIDER ASSY.

Incl 2 - 28

1шт.

2

1300176C1

CLAMP,28.5mm ID

1шт.

3

87017756

TUBE,23.03 mm ID x 28.57 mm OD x 390 mm L

1шт.

4

1307692C2

TUBE,390 mm Length

Vertical Wing Support Upper

1шт.

5

87017856

TUBE,21.34 mm OD x 190 mm L

1шт.

6

87450149

ANGLE

2шт.

7

86997191

U-BOLT

2шт.

8

87017761

SUPPORT

1шт.

9

1316201C2

TUBE

1шт.

10

1316649C1

DIVIDER POINT

1шт.

11

87450158

PIPE

1шт.

12

280736

NUT,5/16"-18, GC

7шт.

13

88902

NUT,3/8"-16

3шт.

14

86992215

LOCK NUT,1/2"-13, GC

5шт.

15

280129

NUT,1/4"-20

2шт.

16

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

17

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

3шт.

18

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

280744

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

2шт.

20

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

8шт.

22

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

23

87327192

SCREW,Truss HD, 1/4" x 3/4", Gr 8

2шт.

24

86627644

SUPPORT

3шт.

25

87017760

SUPPORT

Outer Wing

1шт.

26

87571655

SUPPORT

Inner Wing

1шт.

27

1307684C2

CLAMP

1шт.

28

86997190

TUBE,15.24 mm ID x 19.05 mm OD x 450 mm L

2шт.
