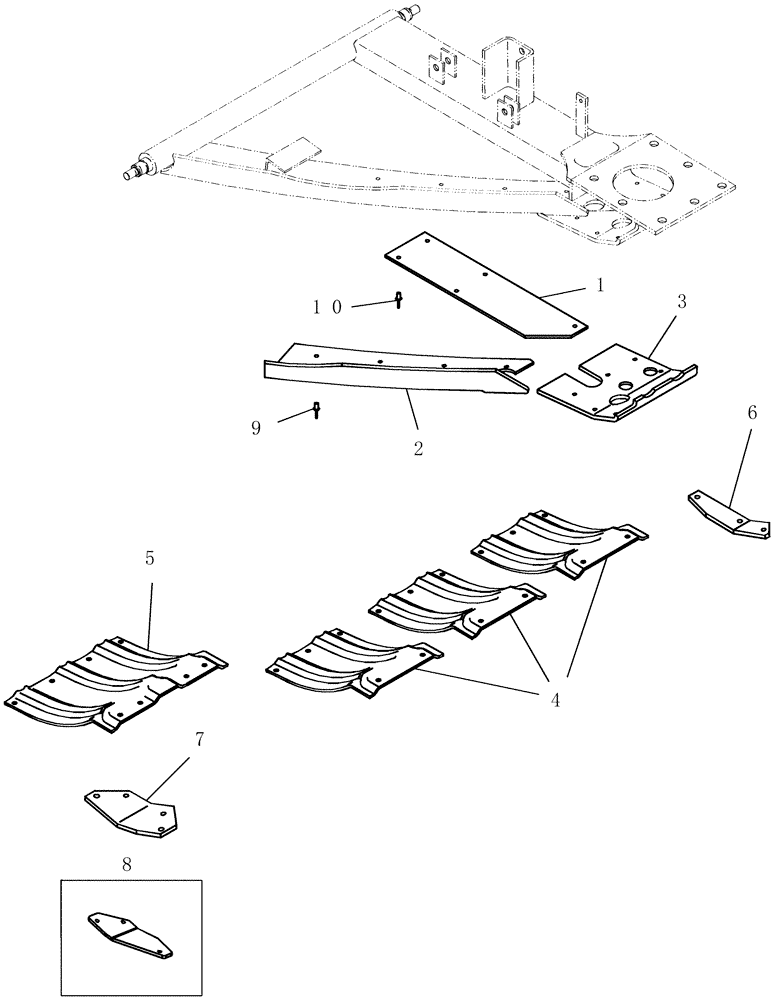

Запчасти Case IH 1020 (09D-18) - POLY-SKID ATTACHMENT - ASN JJC0322584 (09) - CHASSIS/ATTACHMENTS

1

394676A1

SKID/SHOE

A-frame tube

1шт.

2

394675A1

SKID/SHOE

diagonal brace

1шт.

3

377582A1

SKID/SHOE

poly LH

1шт.

4

377580A1

SKID/SHOE

poly single 5 3/4" x 7 3/4"

1шт.

5

377581A1

SKID/SHOE

poly, 1 1/2" x 8 5/*" x 7 3/4"

1шт.

6

377585A1

SKID/SHOE

poly RH

1шт.

Required for 1-1/2" Knife Headers ONLY

1шт.

Assemble with (6) 151-570 Rivets

1шт.

7

377586A1

SKID/SHOE

poly RH

1шт.

Assemble with (4) 151-570 Rivets

1шт.

Required for 3" Knife Headers ONLY

1шт.

8

377584A1

SKID/SHOE

poly RH

1шт.

Required for 1-1/2" Knife Headers ONLY

1шт.

9

151-569

RIVET,Pop, 6.35mm OD x 9.53mm L

1шт.

10

87013355

RIVET,Pop, 6.35mm OD x 19.05mm L

1шт.
