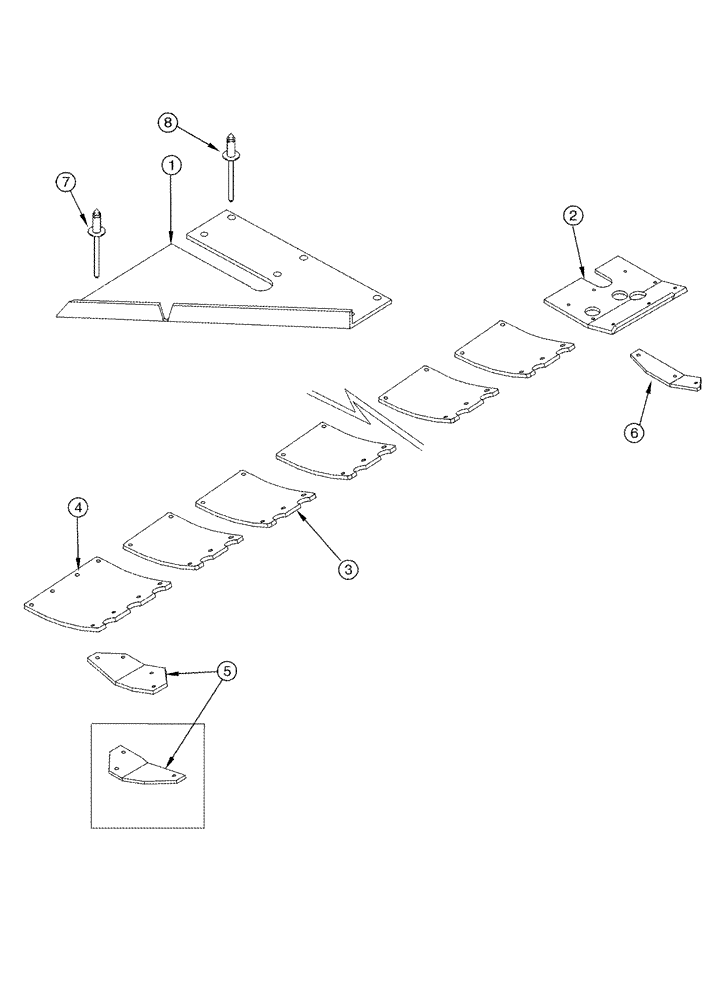

Запчасти Case IH 1020 (09D-17) - POLY-SKID ATTACHMENT - BSN JJC0322583 (09) - CHASSIS/ATTACHMENTS

1

244872A1

STABILIZER

polyskid LH runner

1шт.

2

244871A1

SKID/SHOE

poly LH runner

1шт.

3

244860A1

SKID/SHOE

poly single

1шт.

4

244862A1

SKID/SHOE

poly 1 1/2"

1шт.

5

244865A1

SKID/SHOE

poly RH crop deflector

1шт.

1 1/2" knife

1шт.

5

363170A1

SKID/SHOE

polyskid RH crop deflector

1шт.

3" knife

1шт.

6

244868A1

SKID/SHOE

poly LH crop deflector

1шт.

7

151-569

RIVET,Pop, 6.35mm OD x 9.53mm L

1шт.

Use with 1, 2, 3, 4

1шт.

8

87013355

RIVET,Pop, 6.35mm OD x 19.05mm L

20шт.

Use with 1, 5, 6

1шт.
