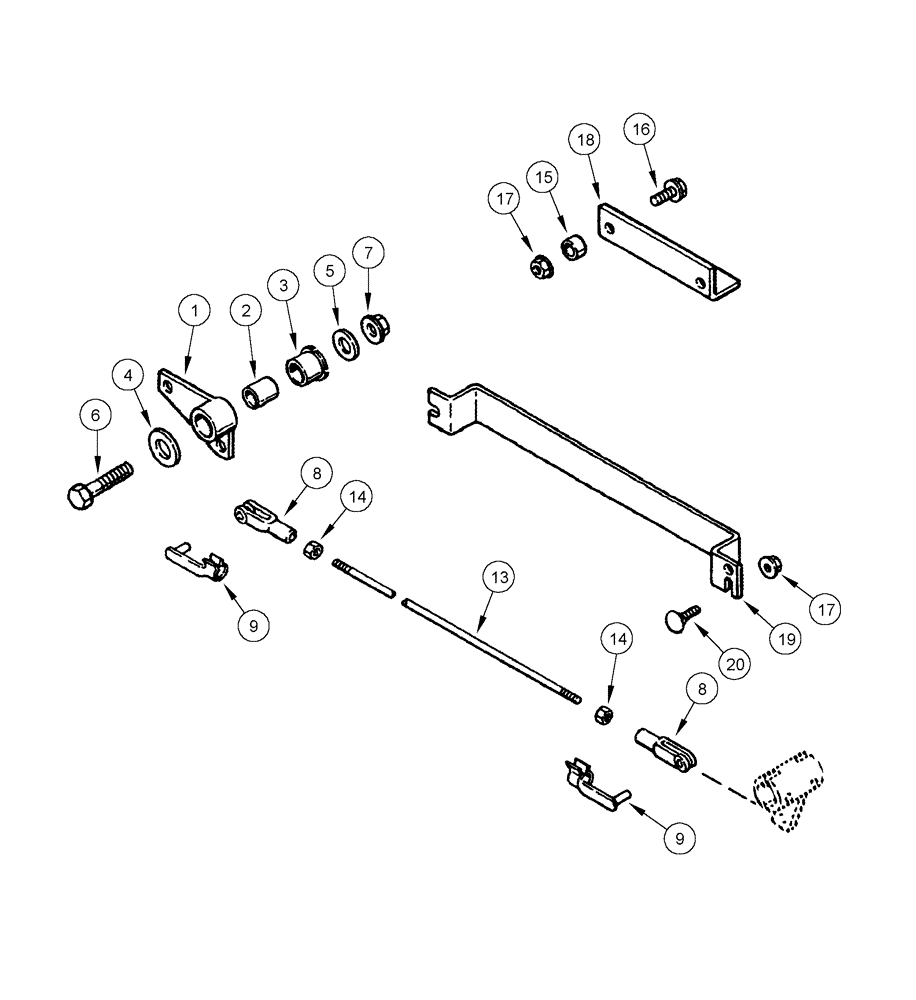

Запчасти Case IH 1020 (09D-13) - HEADER HEIGHT CONTROL - 1420, 1440, 1460 AND 1480 COMBINES WITHOUT ELECTROHYDRAULICS (09) - CHASSIS/ATTACHMENTS

1

1320304C1

LEVER

linkage arm

1шт.

2

487704R1

SPACER,3/4" Tube x 1 3/16"

1шт.

3

185062R1

BUSHING

1шт.

4

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

1шт.

5

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

6

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1шт.

7

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

8

B92555

CLEVIS

2шт.

9

B92556

CLEVIS PIN

2шт.

13

1320308C1

STUD

linkage rod

1шт.

14

86509309

NUT,1/4"-28, G5

2шт.

15

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

16

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

2шт.

17

145458

SERRATED NUT,5/16"-18 GR 5 ZND

3шт.

18

1308301C1

BRACKET

cable mounting

1шт.

18

1308301C2

BRACKET

height control cable, Serial Range: -JJC0350294

1шт.

19

1320313C2

SUPPORT

shield, height control linkage, Serial Range: -JJC0350294

1шт.

20

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.
