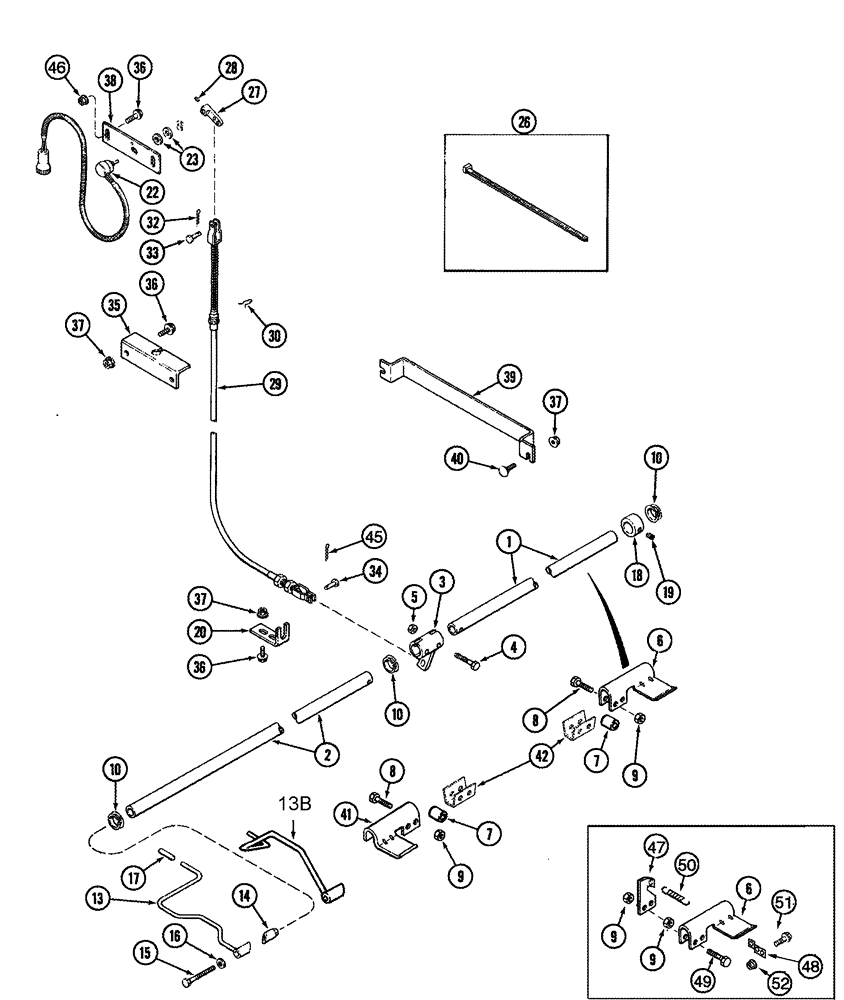

Запчасти Case IH 1020 (09D-11) - HEADER HEIGHT CONTROL - BSN JJC0327999 (09) - CHASSIS/ATTACHMENTS

1

1320298C3

TUBE,17.4 mm ID, 22.22 mm OD

sensor, LH (15.0 foot)

1шт.

1

1326819C3

TUBE,22.22 mm OD, 1320.6 mm Length

sensor, LH (16.5 foot)

1шт.

1

1320299C3

TUBE,17.4 mm ID, 22.22 mm OD

sensor, LH (17.5 foot), Serial Range: -JJC0350294

1шт.

1

1320300C3

TUBE,17.4 mm ID, 22.22 mm OD

sensor, LH (20.0 foot), Serial Range: -JJC0350294

1шт.

1

1320301C3

TUBE,17.4 mm ID, 22.22 mm OD

sensor, LH (22.5 foot), Serial Range: -JJC0350294

1шт.

1

1320302C3

TUBE,17.4 mm ID, 22.22 mm OD

sensor, LH (25.0 foot), Serial Range: -JJC0350294

1шт.

1

1320303C3

TUBE,17.4 mm ID, 22.22 mm OD

sensor, LH (30.0 foot), Serial Range: -JJC0350294

1шт.

2

1307604C2

TUBE,17.4 mm ID, 22.22 mm OD

sensor, RH (15.0 foot)

1шт.

2

1326820C2

TUBE,22.22 mm OD, 3504.1 mm Length

sensor, RH (16.5 foot)

1шт.

2

1307605C2

TUBE,17.4 mm ID, 22.22 mm OD

sensor, RH (17.5 foot), Serial Range: -JJC0350294

1шт.

2

1307606C2

TUBE,17.4 mm ID, 22.22 mm OD

sensor, RH (20.0 foot), Serial Range: -JJC0350294

1шт.

2

1307607C2

TUBE,17.4 mm ID, 22.22 mm OD

sensor, RH (22.5 foot), Serial Range: -JJC0350294

1шт.

2

1307608C2

TUBE,17.4 mm ID, 22.22 mm OD

sensor, RH (25.0 foot), Serial Range: -JJC0350294

1шт.

2

1307609C2

TUBE,17.4 mm ID, 22.22 mm OD

sensor, RH (30.0 foot), Serial Range: -JJC0350294

1шт.

3

310964A2

ARM

connector

1шт.

4

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

5

280736

NUT,5/16"-18, GC

2шт.

6

1307610C2

SUPPORT

height control

1шт.

7

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

1шт.

8

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

9

88902

NUT,3/8"-16

1шт.

10

1313081C1

BUSHING,23mm ID x 28.57mm OD x 6.84mm L

pivot

1шт.

13

126339A1

INDICATOR

ROD - no longer available order 126339A2

1шт.

13b

126339A2

INDICATOR

rod, Serial Range: -JJC0350294

1шт.

14

1316572C1

PLUG

indicator rod, beveled

1шт.

15

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

16

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

17

1326543C1

CAP

indicator end

1шт.

18

1308482C1

COLLAR

sensing tube

1шт.

19

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

1шт.

20

1320312C2

ANGLE

cable anchor

1шт.

22

127360A2

POTENTIOMETER

Height Control

1шт.

22

1301147C91

POTENTIOMETER

For Combines with Electro Hydraulic

1шт.

Used on 1400 Series Combines with Electrohydraulics

1шт.

23

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

26

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

27

1968782C1

ARM

potentiometer control

1шт.

Alternate with 131175A1

1шт.

27

131175A1

ARM

potentiometer control

1шт.

Alternate with 1968782C1

1шт.

28

483-1084

SET SCREW,Hex Soc, #8-32 x 1/4"

1шт.

29

302942A2

CABLE

auto header height control

1шт.

30

148151

COTTER PIN,Hairpin, 716"

1шт.

32

280236

COTTER PIN,1/16" x 1/2"

1шт.

33

86596057

CLEVIS PIN,7.92mm OD x 16.78mm L

1шт.

34

439-1412

HEADED PIN,1/4" x 3/4"

1шт.

35

1308301C2

BRACKET

height control cable, Serial Range: -JJC0350294

1шт.

36

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

37

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

38

1308299C5

STRAP

1шт.

39

1320313C1

SUPPORT

linkage shield

1шт.

39

1320313C2

SUPPORT

shield, height control linkage, Serial Range: -JJC0350294

1шт.

40

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

41

185230A1

SUPPORT

height control, LH

1шт.

42

189956A1

SPACER

support

1шт.

45

80756

COTTER PIN,1/8" x 3/4"

1шт.

46

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

47

335593A1

BRACKET

auto header height control spring assist

1шт.

48

335592A1

BRACKET

auto header height control spring assist

1шт.

49

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

50

D124939

SPRING

extension .067 wire .68 OD x 3.3 long

1шт.

51

135270

SERRATED SCREW,5/16" - 18 x 3/4"

2шт.

52

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.
