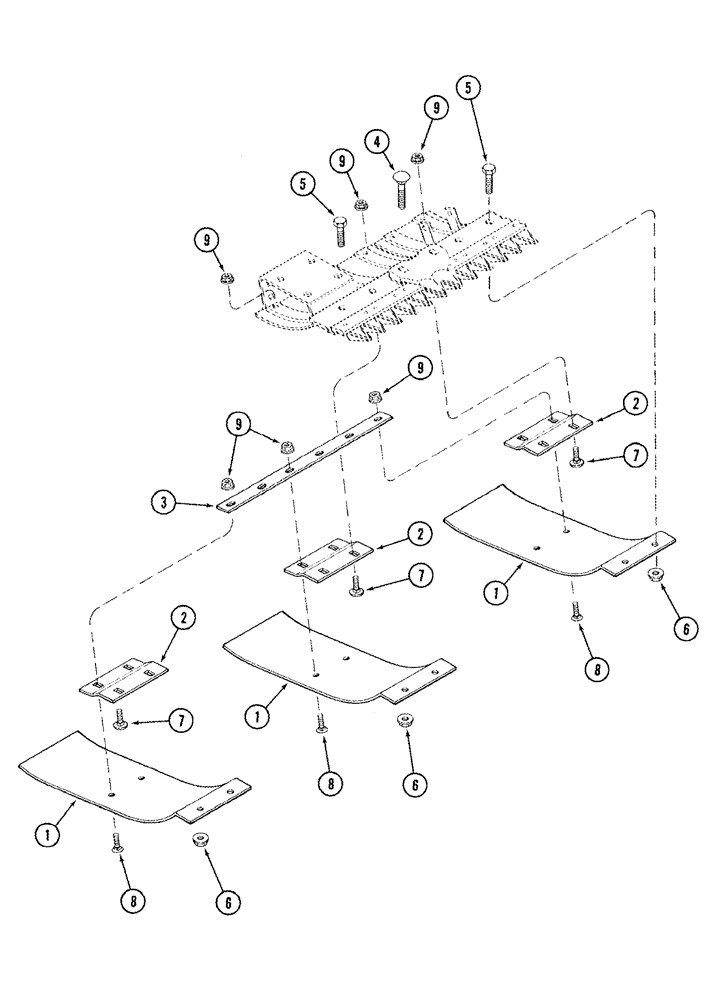

Запчасти Case IH 1020 (09D-07) - AUXILIARY CUTTER BAR PLATES (09) - CHASSIS/ATTACHMENTS

1

1970379C2

SKID PLATE

cutter bar, auxiliary

3шт.

2

1970431C1

SHIELD

skid, auxiliary

3шт.

3

1977119C1

BAR

skid support

1шт.

4

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

4шт.

5

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

6

1313463C1

FLANGE NUT

hex small flange, 7/16" NC

6шт.

7

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

8

281004

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

6шт.

9

247780

SERRATED NUT,Flg, USR, 3/8"-16

12шт.
