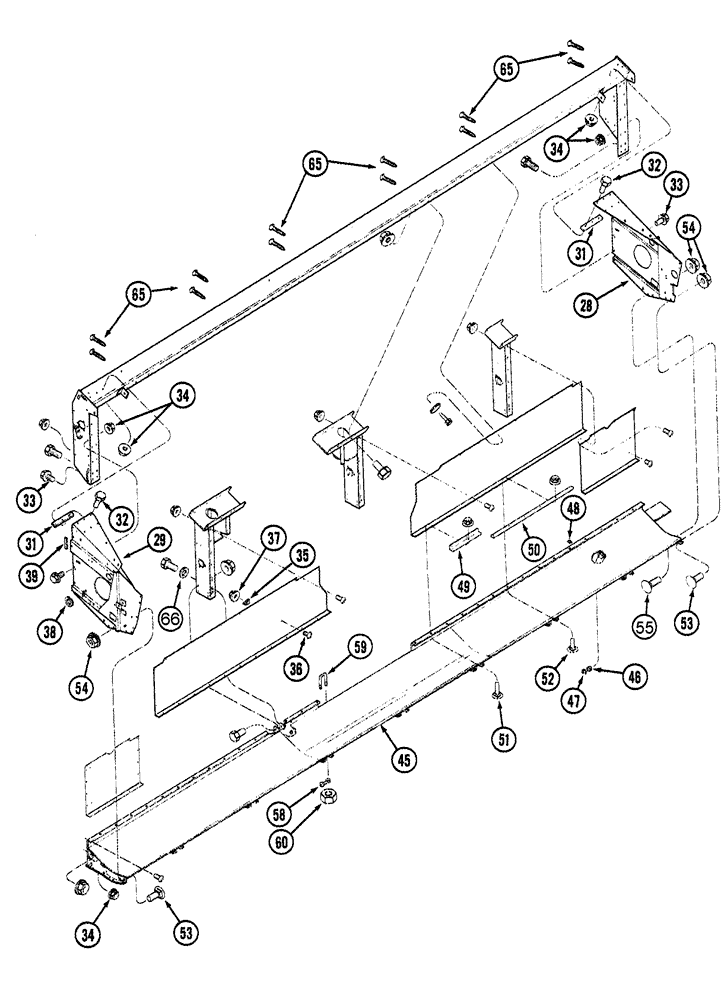

Запчасти Case IH 1020 (09D-04) - MAIN FRAME 22.5, 25.0 AND 30.0 FOOT HEADER (PART 2 OF 2) (09) - CHASSIS/ATTACHMENTS

28

131176A3

SUPPORT

LH end sheet, Serial Range: -JJC0350294

1шт.

Includes 31

1шт.

29

130817A4

SUPPORT

endsheet RH

1шт.

Includes 31

1шт.

31

1313966C1

BAR

shim

2шт.

32

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

6шт.

33

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

12шт.

34

247780

SERRATED NUT,Flg, USR, 3/8"-16

18шт.

35

133973A1

ANGLE

shield chain, Serial Range: -JJC0350294

4шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

37

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

38

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX

1шт.

Cut From 1330108CX

1шт.

39

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

76 mm (3") long, cut from 1330108CX bulk

1шт.

Cut From 1330108CX

1шт.

45

1307503C95

BEAM

lower flex 22.5 foot, Serial Range: -JJC0350294

1шт.

Includes 46, 47

1шт.

45

1307504C95

BEAM

lower 25.0 foot, Serial Range: -JJC0350294

1шт.

Includes 46, 47

1шт.

45

1307505C95

BEAM

lower flex 30.0 foot, Serial Range: -JJC0350294

1шт.

Includes 46, 47

1шт.

46

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self-Aligning 41.26 x 25.4 x 22.25

1шт.

47

86013223

SNAP RING,1.625", Int, #162

1шт.

48

87414

LUBE NIPPLE,1/4" - 28

1шт.

49

1316564C1

ANGLE

finger shaft, Serial Range: -JJC0350294

2шт.

50

189825C2

STRIPPER

auger, adjustable, Serial Range: -JJC0350294

1шт.

51

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

52

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

53

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

54

86512371

SERRATED NUT,Flg, USR, 1/2"-13

17шт.

55

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

58

1307371C1

LATCH

bar feeder dogbone, Serial Range: -JJC0350294

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" 5/8"-11, 4.6" ID Height, 2.18" ID Width

2шт.

60

86520346

NUT,5/8"-11, GB

4шт.

65

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

12шт.

66

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

4шт.

73

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

4шт.
