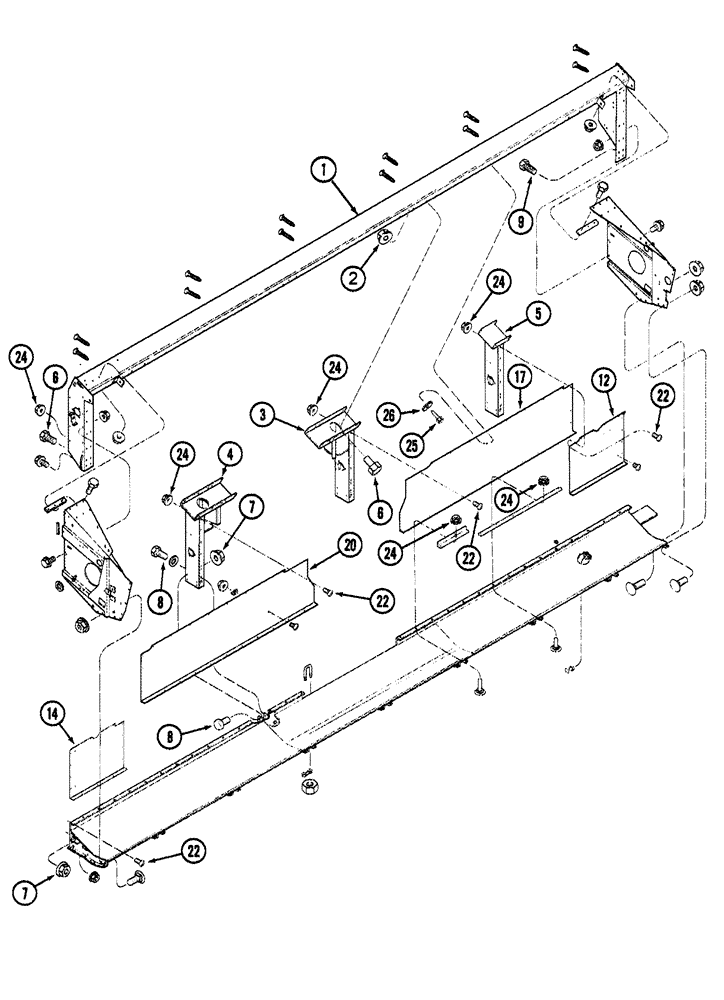

Запчасти Case IH 1020 (09D-03) - MAIN FRAME 22.5, 25.0 AND 30.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS

1

126002A3

BEAM

main 22.5 foot, Serial Range: -JJC0350294

1шт.

1

126004A3

BEAM

main 25.0 foot, Serial Range: -JJC0350294

1шт.

1

126005A3

BEAM

main 30.0 foot, Serial Range: -JJC0350294

1шт.

2

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

, Serial Range: -JJC0350294

40шт.

3

1307374C7

POST

vertical LH, Serial Range: -JJC0350294

1шт.

4

1307375C7

POST

vertical RH, Serial Range: -JJC0350294

1шт.

5

1307376C6

POST

intermediate LH, Serial Range: -JJC0350294

1шт.

5

128414A4

POST

intermediate RH, Serial Range: -JJC0350294

1шт.

6

87034823

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

, Serial Range: -JJC0350294

40шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

14шт.

8

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

38шт.

9

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

12

1307093C1

SHEET

back LH 22.5 foot, Serial Range: -JJC0350294

1шт.

12

1307095C1

SHEET

back LH 25.0 foot

1шт.

12

1307097C1

SHEET

back LH 30.0 foot, Serial Range: -JJC0350294

1шт.

14

1307094C1

SHEET

back RH 22.5 foot, Serial Range: -JJC0350294

1шт.

14

1307096C1

SHEET

back RH 25.0 foot, Serial Range: -JJC0350294

1шт.

14

1307098C1

SHEET

back RH 30.0 foot, Serial Range: -JJC0350294

1шт.

17

1326062C93

SHIELD

backsheet center LH

1шт.

Includes Decal

1шт.

20

1326063C94

SHIELD

backsheet center RH

1шт.

Includes Decal

1шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

1шт.

22

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

24

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

25

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

1шт.

26

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.
