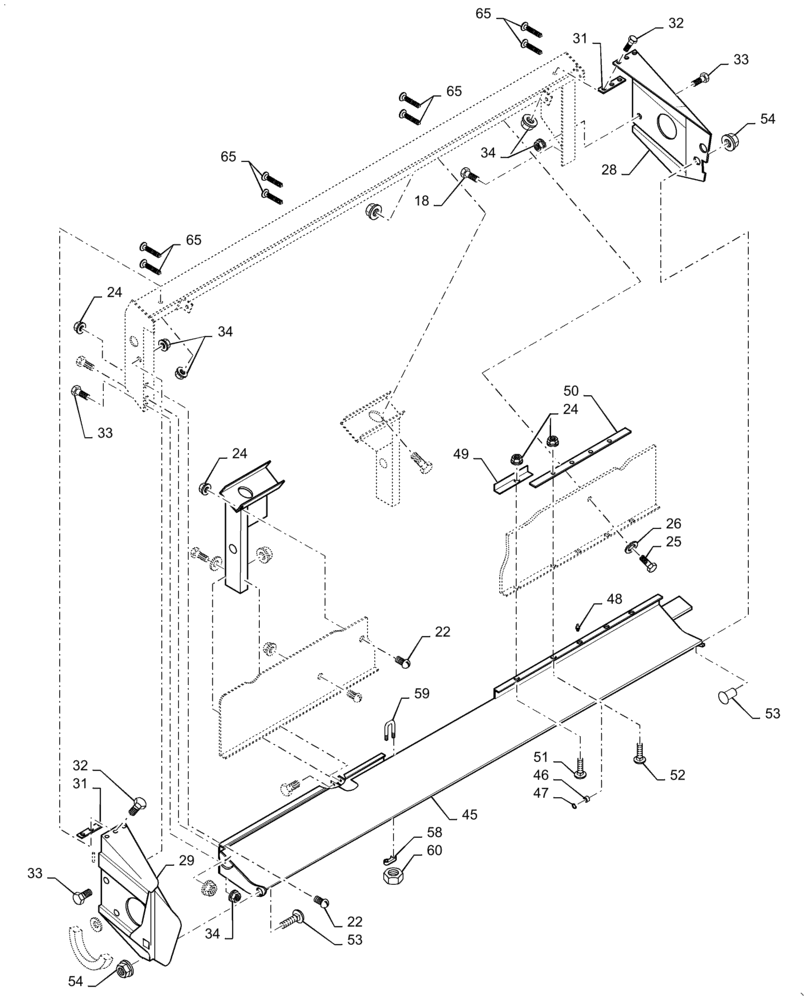

Запчасти Case IH 1020 (09D-02) - MAIN FRAME 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER (PART 2 OF 2) (09) - CHASSIS/ATTACHMENTS

18

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

1шт.

24

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

25

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

1шт.

26

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.

28

131176A3

SUPPORT

LH end sheet, Serial Range: -JJC0350294

1шт.

Includes 31

1шт.

29

130817A4

SUPPORT

endsheet RH

1шт.

Includes 31

1шт.

31

1313966C1

BAR

shim

2шт.

32

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

6шт.

33

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

12шт.

34

247780

SERRATED NUT,Flg, USR, 3/8"-16

24шт.

45

1307500C95

BEAM

lower, 15.0 foot

1шт.

Includes 46, 47

1шт.

45

1326806C5

BEAM ASSY.

lower 16.5 foot

1шт.

Includes 46, 47

1шт.

45

1307501C96

BEAM

lower flex 17.5 foot, Serial Range: -JJC0350294

1шт.

Includes 46, 47

1шт.

45

1307502C96

BEAM

lower flex 20.0 foot, Serial Range: -JJC0350294

1шт.

Includes 46, 47

1шт.

46

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self-Aligning 41.26 x 25.4 x 22.25

1шт.

47

86013223

SNAP RING,1.625", Int, #162

1шт.

48

87414

LUBE NIPPLE,1/4" - 28

1шт.

49

1316564C1

ANGLE

finger shaft, Serial Range: -JJC0350294

2шт.

50

189825C2

STRIPPER

auger, adjustable, Serial Range: -JJC0350294

1шт.

51

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

52

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

53

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

54

232-5318

FLANGE NUT,Flg, 1/2"-13

4шт.

58

1307371C1

LATCH

bar feeder dogbone, Serial Range: -JJC0350294

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" 5/8"-11, 4.6" ID Height, 2.18" ID Width

2шт.

60

86520346

NUT,5/8"-11, GB

4шт.

65

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.
