(09C-14) - DRIVE SHAFT 22.5, 25.0 AND 30.0 FOOT HEADER - BSN JJC0323604

Запчасти Case IH 1020 (09C-14) - DRIVE SHAFT 22.5, 25.0 AND 30.0 FOOT HEADER - BSN JJC0323604 (09) - CHASSIS/ATTACHMENTS

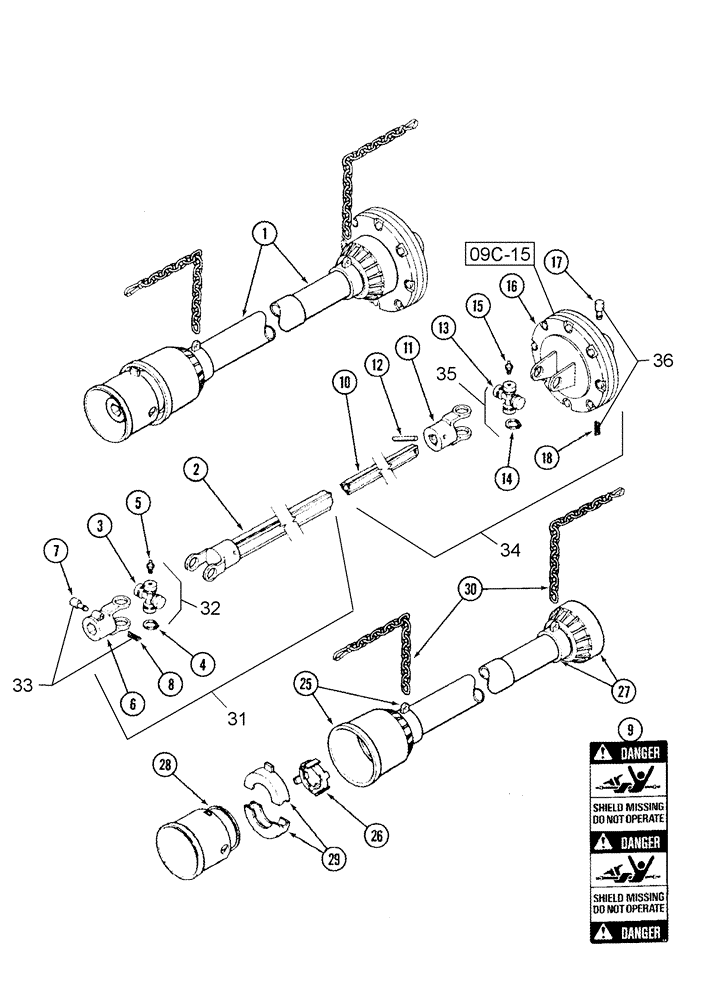

Схема запчастей Case IH 1020 - (09C-14) - DRIVE SHAFT 22.5, 25.0 AND 30.0 FOOT HEADER - BSN JJC0323604 (09) - CHASSIS/ATTACHMENTS
29
6
27
26
09c-15
5
15
9
34
36
11
35
32
25
14
4
17
2
33
30
3
7
31
12
10
16
28
18
1
8
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

106043A1

DRIVE SHAFT

auger RH, Serial Range: -JJC0323603

1шт.

Includes 2 - 30

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Assy

1шт.

3

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

4

278643

SNAP RING,M24, Int

4шт.

5

933756R1

LUBE NIPPLE,M6 x 1

2шт.

6

NSS

NOT SOLD SEPARAT

Yoke

1шт.

7

NSS

NOT SOLD SEPARAT

Pin

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

1326528C1

DECAL

Danger, shield missing, do not operate

1шт.

10

NSS

NOT SOLD SEPARAT

Tube

1шт.

11

NSS

NOT SOLD SEPARAT

Yoke

1шт.

12

838-5845

LOCK PIN,M8 x 45, Slotted

1шт.

13

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

14

278643

SNAP RING,M24, Int

4шт.

15

933756R1

LUBE NIPPLE,M6 x 1

2шт.

16

106089A1

CLUTCH

drive shaft

1шт.

See figure 09C-17

1шт.

17

NSS

NOT SOLD SEPARAT

Pin

1шт.

18

NSS

NOT SOLD SEPARAT

Spring

1шт.

25

106103A1

OUTER SHIELD

outer female shaft

1шт.

Includes 26

1шт.

26

NSS

NOT SOLD SEPARAT

Bearing, Support

1шт.

27

106105A1

INNER SHIELD

inner male shaft

1шт.

28

1326625C91

SHIELD

outer yoke

1шт.

Includes 29

1шт.

29

NSS

NOT SOLD SEPARAT

Collar

1шт.

30

1326632C1

CHAIN

safety

2шт.

31

106107A1

SHAFT

female drive

1шт.

Includes 2 - 9

1шт.

32

1330586C1

REPAIR KIT

cross and bearing

1шт.

Includes 3 - 5

1шт.

33

782083

LOCK PIN

And Spring

1шт.

Includes 7, 8

1шт.

34

106109A1

SHAFT

male drive

1шт.

Includes 10 - 18

1шт.

35

1330586C1

REPAIR KIT

cross and bearing

1шт.

Includes 13 - 15

1шт.

36

782083

LOCK PIN

And Spring

1шт.

Includes 17, 18

1шт.
