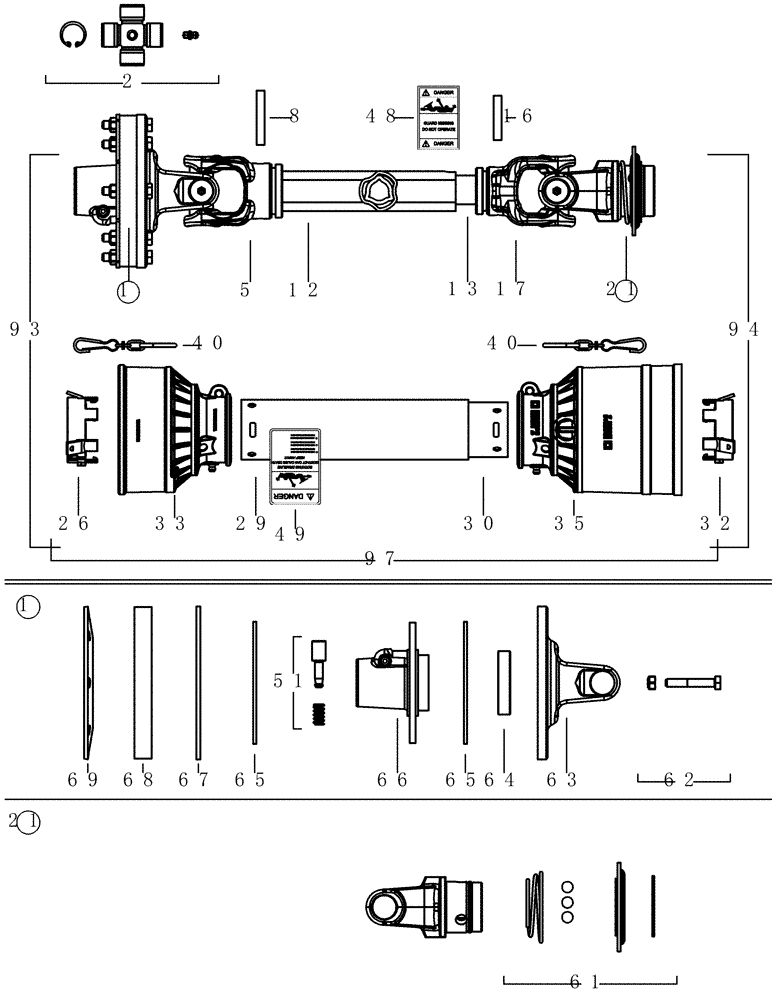

Запчасти Case IH 1020 (09C-14) - DRIVE SHAFT 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER ASN CBJ044231 (09) - CHASSIS/ATTACHMENTS

0

87438829

SHAFT

assembly, pto driveline 15'-20'

1шт.

1

84125458

CLUTCH

pto assy, auger drive

1шт.

2

84126876

UNIVERSAL JOINT

cross and bearing

2шт.

5

84125366

YOKE

outer tube

1шт.

8

86625846

PIN

spring

1шт.

12

84125470

TUBE,735 mm Length

female torque

1шт.

13

9842396

TUBE

male

1шт.

16

838-5845

LOCK PIN,M8 x 45, Slotted

1шт.

17

278649

YOKE

1шт.

21

87496837

YOKE

1 1/8" hex

1шт.

26

9807221

RING

bearing

1шт.

29

84125457

SHIELD

safety tube outer

1шт.

30

84125331

SHIELD

safety tube inner

1шт.

32

9807222

RING

bearing

1шт.

33

84126866

SHIELD

pto shaft safety

1шт.

35

84126865

SHIELD

pto shaft safety

1шт.

40

278645

CHAIN

2шт.

48

849472

DANGER DECAL

shield missing

1шт.

49

849471

DANGER DECAL

rotating driveline

1шт.

51

782083

LOCK PIN

And Spring

1шт.

61

84126842

YOKE

pto ball collar

1шт.

62

86625002

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

8шт.

62

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

63

86984908

FLANGE

slip clutch yoke

1шт.

64

86984909

BUSHING

PTO Slip Clutch

1шт.

65

84126900

CLUTCH DISC,67mm ID x 122mm OD x 3.2mm Thk

CLUTCH DISK friction lining

2шт.

66

86984912

HUB

assembly, slip clutch

1шт.

67

84126899

CLUTCH PLATE,68.5mm ID x 149mm OD x 4mm Thk

inner pressure

1шт.

68

84126897

BAND

pto clutch adjustment

1шт.

69

84126886

SPRING

belleville, pto clutch

1шт.

93

84125450

SHAFT

pto, half with clutch assembly

1шт.

94

84125309

SHAFT

pto, half inboard

1шт.

97

84125296

SHIELD

complete kit

1шт.
