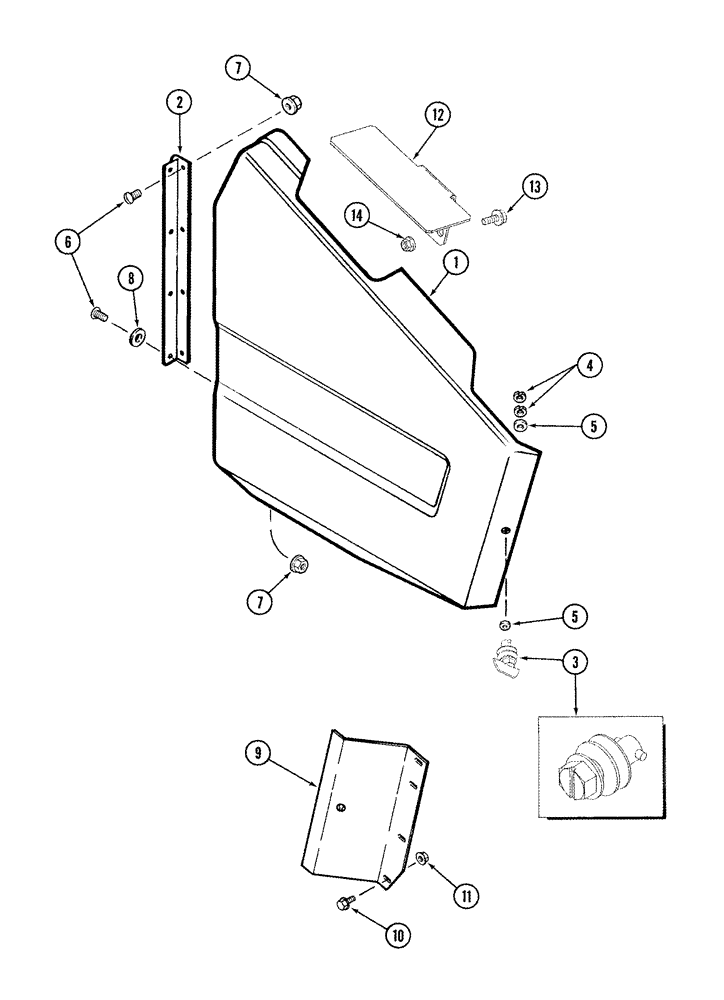

Запчасти Case IH 1020 (09C-07) - AUGER DRIVE SHIELDS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1316566C3

SHIELD

end, RH

1шт.

2

1326230C2

HINGE

hopper lid

1шт.

3

1326408C2

STUD,25.4mm OD x 52.3mm L

stud, shield

1шт.

3

252117A1

FASTENER

shield

1шт.

Australia Only

1шт.

4

1326407C1

RETAINER

shield stud

2шт.

5

495-81023

WASHER,17/32" x 1 1/4" x .030"

6шт.

6

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

8шт.

7

523282

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

8

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

9

1316721C1

SUPPORT

bracket RH shield - front, Start Serial: CBJ023001

1шт.

10

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

2шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

12

87450174

SHIELD

cover, chain, Start Serial: CBJ023001

1шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

14

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.
