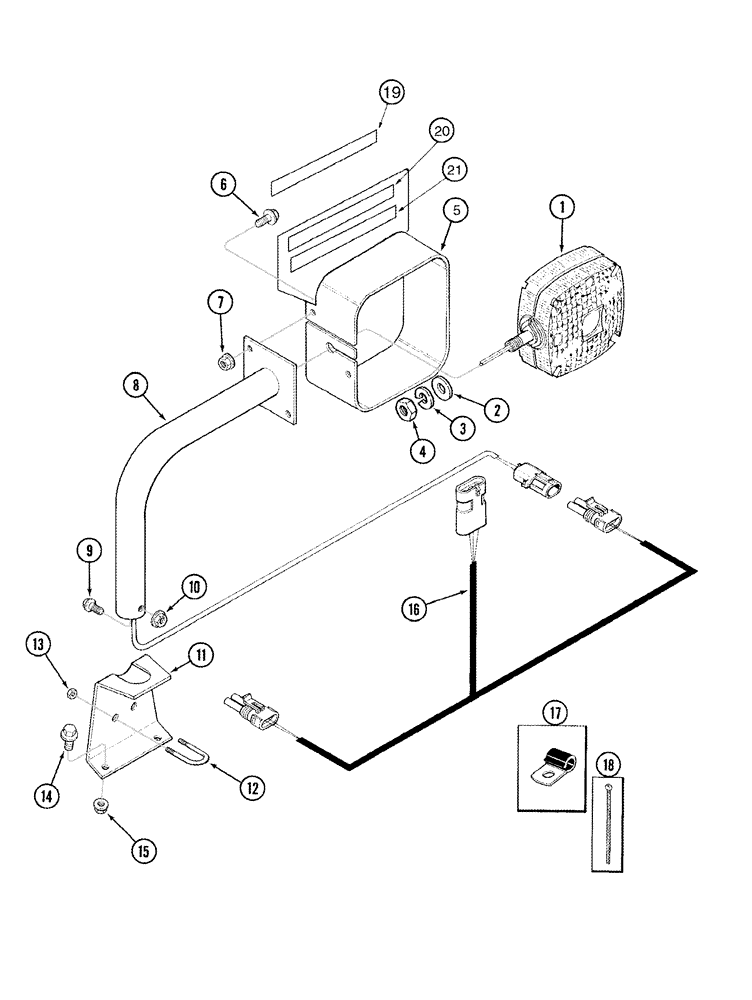

Запчасти Case IH 1020 (04-02) - WIRING HARNESS AND LAMP MOUNTING (04) - ELECTRICAL SYSTEMS

1

134454A1

LAMP,Halogen, 12V, 32W, Clear

warning amber

2шт.

Includes 2 - 4

1шт.

2

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

5

390636A1

BRACKET

marker light

2шт.

6

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

7

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

8

127031A1

SUPPORT

marker light

2шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

11

87450172

BRACKET

marker light, Start Serial: CBJ023001

2шт.

12

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

UR 5/16" x 1 5/16" x 1 13/16" NC

2шт.

13

231-4215

LOCK NUT,5/16"-18, GB

4шт.

14

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

4шт.

15

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

16

128896A1

WIRE HARNESS

lamp, marker lights

1шт.

17

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

18

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

19

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

1шт.

20

311863A1

REFLECTOR

Retroreflective Red

1шт.

21

311865A1

REFLECTOR

fluorescent orange

1шт.
