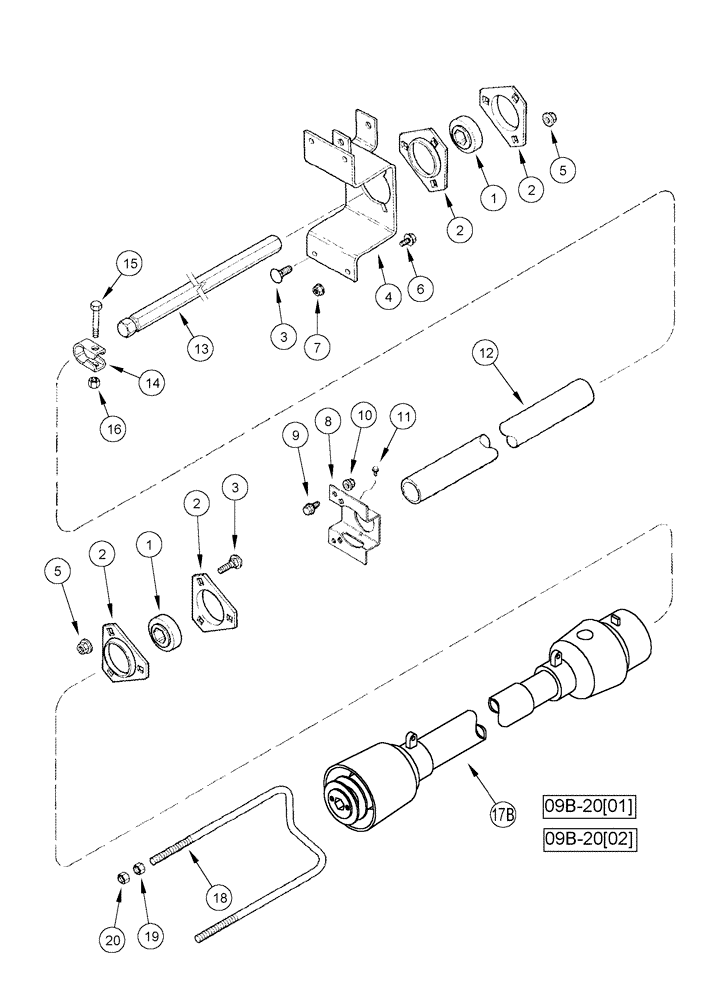

Запчасти Case IH 1020 (09B-15) - KNIFE JACKSHAFT DRIVE - 22.5 AND 25.0 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

2

86620026

FLANGED BEARING

bearing, Start Serial: CBJ023001

4шт.

3

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

4

87450190

SUPPORT

knife drive, Start Serial: CBJ023001

1шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

6

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

8

87450188

SUPPORT

plate shield, Start Serial: CBJ023001

1шт.

9

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

11

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

1шт.

12

125989A1

TUBE,48.26 mm OD, 729 mm Length

jackshaft 30.0 foot

1шт.

12

178164A1

TUBE,48.26 mm OD

jackshaft shield, 25.0 foot LH

1шт.

13

125972A2

JACKSHAFT

22.5 foot

1шт.

13

125973A2

JACKSHAFT

25.0 foot

1шт.

14

87500159

CLAMP

tie rod, Start Serial: CBJ023001

1шт.

15

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

16

86992215

LOCK NUT,1/2"-13, GC

1шт.

17b

1313570C95

DRIVE SHAFT

knife, Serial Range: CBJ023001-CBJ044231

1шт.

See figure 09B-20

1шт.

17b

87438828

SHAFT

assembly, pto driveline 22'-30', Start Serial: CBJ044231

1шт.

See figure 09B-20[02]

1шт.

18

138005A1

HANGER

drive line

1шт.

19

280431

NUT,1/2"-13, G5

2шт.

20

86992215

LOCK NUT,1/2"-13, GC

2шт.
