Запчасти Case IH 1020 (09B-13) - KNIFE JACKSHAFT DRIVE - 15 AND 16.5 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

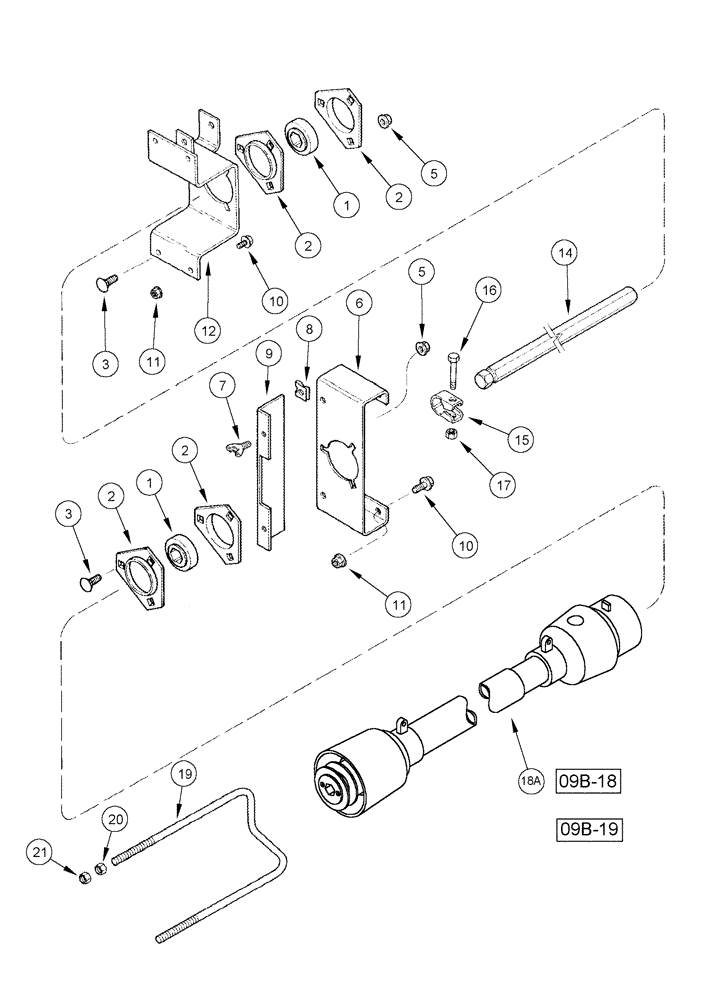

Схема запчастей Case IH 1020 - (09B-13) - KNIFE JACKSHAFT DRIVE - 15 AND 16.5 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS
18a
16
11
3
15
10
1
12
20
5
8
7
09b-18
09b-19
17
2
2
9
14
10
21
3
6
2
11
19
1
5
2

Артикул

Название

Примечание

Количество

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

2

86620026

FLANGED BEARING

bearing, Start Serial: CBJ023001

4шт.

3

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

6

1320892C1

SUPPORT

jackshaft 15.0 foot

1шт.

7

183-123

THUMB SCREW

thumb with shoulder, 5/16 NC x 3/4 inch

2шт.

8

488837C1

SPRING NUT

5/16" speed

2шт.

9

1326597C1

SHIELD

clutch 15.0 and 16.5 foot

1шт.

10

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

5шт.

10

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

1шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

12

87450169

SUPPORT

knife drive, Start Serial: CBJ023001

1шт.

14

125969A2

JACKSHAFT

15.0 and 16.5 foot

1шт.

15

87500159

CLAMP

tie rod, Start Serial: CBJ023001

1шт.

16

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

17

86992215

LOCK NUT,1/2"-13, GC

1шт.

18a

1313569C94

DRIVE SHAFT

PTO knife, Serial Range: CBJ023001-CBJ044231

1шт.

See figure 09B-18

1шт.

18a

87438827

SHAFT

assembly, pto driveline 15'-20', Start Serial: CBJ044231

1шт.

See figure 09B-19

1шт.

19

138005A1

HANGER

drive line

1шт.

20

280431

NUT,1/2"-13, G5

2шт.

21

86992215

LOCK NUT,1/2"-13, GC

2шт.

Выбрано товаров: 23
