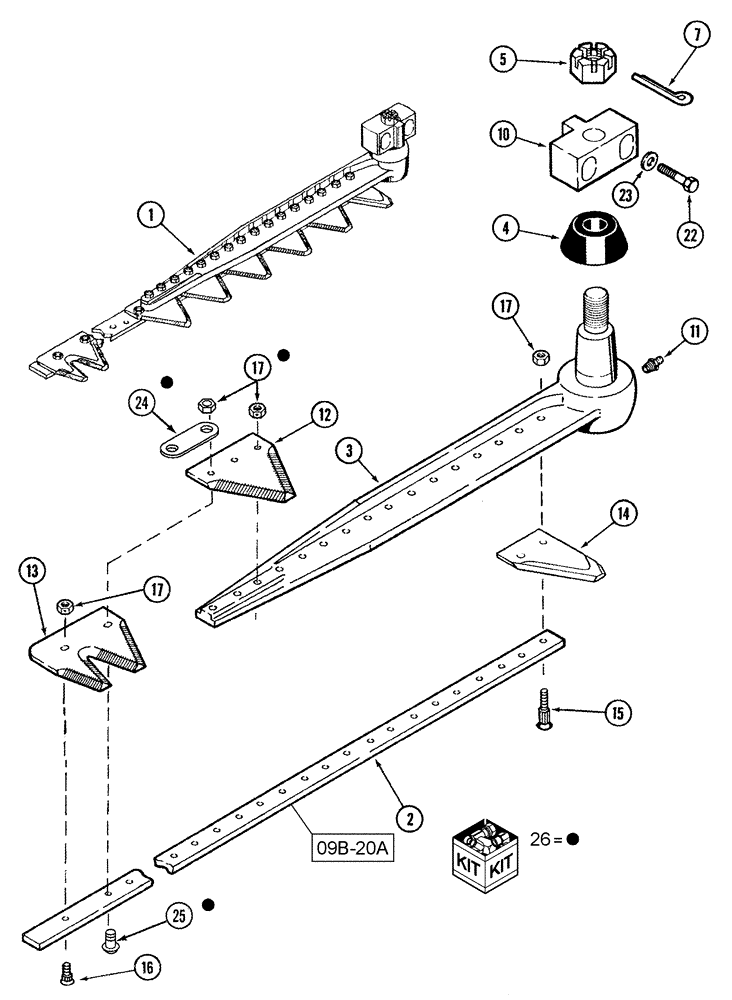

Запчасти Case IH 1020 (09B-06) - KNIFE ASSEMBLY 3 INCH BOLTED COARSE SERRATIONS (09) - CHASSIS/ATTACHMENTS

1

1307281C99

KNIFE ASSY

3", 15.0 foot

1шт.

Includes 2 - 17

1шт.

1

87439540

KNIFE ASSY

3" coarse, 15.0 foot

1шт.

Includes 2 - 17

1шт.

1

1326835C9

KNIFE ASSY

3" 16.5 foot

1шт.

Includes 2 - 17

1шт.

1

87439541

KNIFE ASSY

3" coarse, 16.5 foot

1шт.

Includes 2 - 17

1шт.

1

87439542

KNIFE ASSY

3" coarse, 17.5 foot

1шт.

Includes 2 - 17

1шт.

1

1307283C99

KNIFE ASSY

3", 20.0 foot

1шт.

Includes 2 - 17

1шт.

1

87439543

KNIFE ASSY

3" coarse, 20.0 foot

1шт.

Includes 2 - 17

1шт.

1

1307284C99

KNIFE ASSY

3", 22.5 foot

1шт.

Includes 2 - 17

1шт.

1

87439544

KNIFE ASSY

3" coarse, 22.5 foot

1шт.

Includes 2 - 17

1шт.

1

376534A1

KNIFE ASSY

3" bolted coarse 25'

1шт.

Includes 2 - 17

1шт.

See figure 09B-20A For Modular Knives

1шт.

1

376534A2

KNIFE ASSY

3" bolted coarse 25'

1шт.

Includes 2 - 17

1шт.

See figure 09B-20A For Modular Knives

1шт.

1

376534A3

KNIFE ASSY

3" coarse, 25.0 foot

1шт.

Includes 2 - 17

1шт.

See figure 09B-20A For Modular Knives

1шт.

1

376535A1

KNIFE ASSY

3" bolted coarse 30'

1шт.

Includes 2 - 17

1шт.

See figure 09B-20A For Modular Knives

1шт.

1

376535A2

KNIFE ASSY

3" bolted coarse 30'

1шт.

Includes 2 - 17

1шт.

See figure 09B-20A For Modular Knives

1шт.

1

376535A3

KNIFE ASSY

3" coarse, 30.0 foot

1шт.

Includes 2 - 17

1шт.

See figure 09B-20A For Modular Knives

1шт.

2

NSS

NOT SOLD SEPARAT

Bar

1шт.

3

1316161C94

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4 and 10

1шт.

3

1316161C95

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4 and 10

1шт.

4

1345491C2

DUST CAP

cover

1шт.

5

86637930

SLOTTED NUT,5/8"-18, G5

1шт.

7

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

10

1313797C1

BLOCK

knife head

1шт.

10

1313797C2

BLOCK

knife head

1шт.

11

87414

LUBE NIPPLE,1/4" - 28

1шт.

12

112074A1

KNIFE SECTION

SECTION, KNIFE overserrated, 3"

1шт.

12

191256A1

KNIFE SECTION

SECTION, KNIFE overserrated 3", chrome, if used

1шт.

13

148200C1

KNIFE SECTION

SECTION, KNIFE overserrated, double right-hand

1шт.

14

1316030C2

KNIFE SECTION

SECTION, KNIFE 3", plain half

1шт.

15

1979166C1

BOLT

#12-24 x 1 1/8"

16шт.

16

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8" slot bt hd

1шт.

17

1954816C1

LOCK NUT

hex lock, No. 12-24

1шт.

22

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

23

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

24

321848A1

KNIFE CLIP

knife reinforcing, 3" knives

1шт.

25

87423458

BOLT,Truss HD, #12 - 24 x 0.7", Gr 8

#12-24 NC x .70" knurled neck

1шт.

26

321849A2

KIT

reinforcing strap for 3" knives

1шт.

Includes 17, 24, 25

1шт.
