Запчасти Case IH 1020 (09B-04) - KNIFE ASSEMBLY - 1.5 INCH BOLTED COARSE SERRATIONS (09) - CHASSIS/ATTACHMENTS

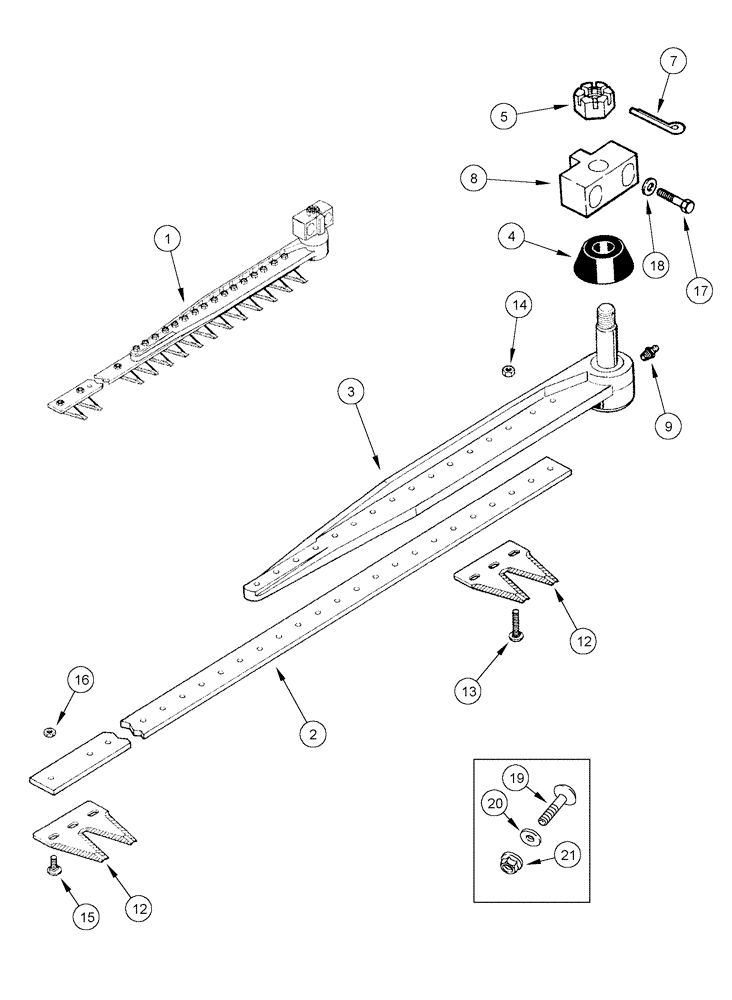

Схема запчастей Case IH 1020 - (09B-04) - KNIFE ASSEMBLY - 1.5 INCH BOLTED COARSE SERRATIONS (09) - CHASSIS/ATTACHMENTS
12
19
1
2
7
17
3
20
9
21
18
5
12
13
16
14
4
15
8

Артикул

Название

Примечание

Количество

1

398746A1

KNIFE ASSY

1 1/2" coarse, 15.0 foot

1шт.

Includes 2 - 16

1шт.

1

398746A2

KNIFE ASSY

1 1/2" coarse with autotemp, 15.0 foot

1шт.

Includes 2 - 16

1шт.

1

398747A1

KNIFE ASSY

1 1/2" coarse, 16.5 foot

1шт.

Includes 2 - 16

1шт.

1

398747A2

KNIFE ASSY

1 1/2" coarse, 16.5 foot

1шт.

Includes 2 - 16

1шт.

1

398748A1

KNIFE ASSY

1 1/2" coarse, 17.5 foot

1шт.

Includes 2 - 16

1шт.

1

398748A2

KNIFE ASSY

1 1/2" coarse with autotemp, 17.5 foot

1шт.

Includes 2 - 16

1шт.

1

398749A1

KNIFE ASSY

1 1/2" coarse, 20.0 foot

1шт.

Includes 2 - 16

1шт.

1

398749A2

KNIFE ASSY

1 1/2" 20.0 foot

1шт.

Includes 2 - 16

1шт.

1

398750A1

KNIFE ASSY

1 1/2" coarse, 22.5 foot

1шт.

Includes 2 - 16

1шт.

1

398750A2

KNIFE ASSY

1 1/2" coarse, 22.5 foot

1шт.

Includes 2 - 16

1шт.

1

398751A1

KNIFE ASSY

1 1/2" coarse with autotemp, 25.0 foot

1шт.

Includes 2 - 16

1шт.

1

398751A2

KNIFE ASSY

1 1/2" 25.0 foot

1шт.

Includes 2 - 16

1шт.

1

398752A1

KNIFE ASSY

1 1/2" coarse, 30.0 foot

1шт.

Includes 2 - 16

1шт.

1

398752A2

KNIFE ASSY

1 1/2" 30.0 foot

1шт.

Includes 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Bar

1шт.

3

1313795C94

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

3

1313795C95

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

4

1345491C2

DUST CAP

cover

1шт.

5

86637930

SLOTTED NUT,5/8"-18, G5

1шт.

7

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

8

1313797C1

BLOCK

knife head

1шт.

8

1313797C2

BLOCK

knife head

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

1шт.

12

394618A1

KNIFE SECTION

SECTION, KNIFE 1 1/2" austempered coarse serrations

1шт.

13

1970506C1

CARRIAGE BOLT,#12 - 24 x 1.125" , Gr 8

#12-24 x 1 1/8"

16шт.

14

1954816C1

LOCK NUT

hex lock, No. 12-24

16шт.

15

1970505C1

CARRIAGE BOLT,#12 - 24 x 0.532", Gr 8

#12-24 x 17/32"

1шт.

16

1970507C2

LOCK NUT

hex lock, #12-24

1шт.

17

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

18

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

19

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

For bolting extra knife to header

1шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

For bolting extra knife to header

1шт.

21

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

For bolting extra knife to header

1шт.

Выбрано товаров: 52
