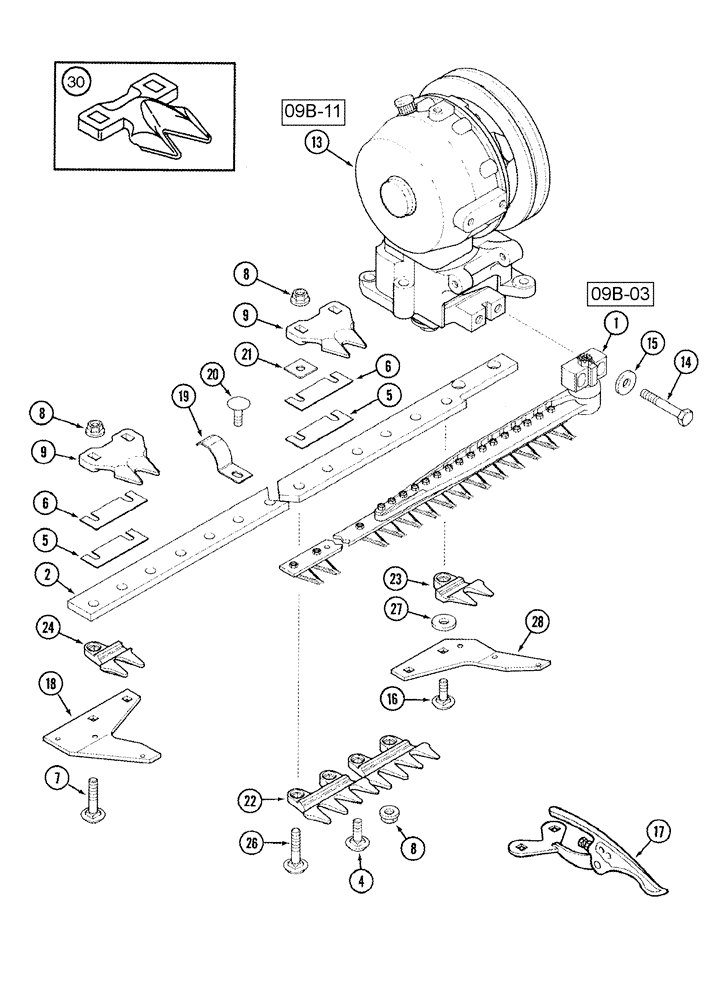

Запчасти Case IH 1020 (09B-01) - KNIFE GUARDS AND CUTTER BAR 1.5 INCH KNIFE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Knife Assy

1шт.

See figure 09B-03

1шт.

2

1307412C1

CUTTERBAR

15.0 foot

1шт.

2

1326813C1

CUTTERBAR

16.5 foot

1шт.

2

87450133

CUTTERBAR

17.5 foot, Start Serial: CBJ023001

1шт.

2

87450134

CUTTERBAR

20.0 foot, Start Serial: CBJ023001

1шт.

2

87450135

CUTTERBAR

22.5 foot, Start Serial: CBJ023001

1шт.

2

87450136

CUTTERBAR,7620mm L

25.0 foot, Start Serial: CBJ023001

1шт.

2

87450137

CUTTERBAR,9144mm L

30.0 foot, Start Serial: CBJ023001

1шт.

4

86502115

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

1шт.

5

1316040C1

SHIM,38.1mm OD x 2.1mm Thk

4 1/2" x 1 1/2" x .067

1шт.

6

1316039C1

SHIM

4 1/2' x 1 1/2" x .016"

1шт.

7

100170

CARRIAGE BOLT,Short NK, 7/16" - 14 x 2 1/2", Gr 5

2шт.

8

87323838

FLANGE NUT

Flg, 7/16"-14, GF, Start Serial: CBJ023001

1шт.

9

101001A2

KNIFE CLIP

hold down

1шт.

13

REF

INSTRUCTION

Box Assy

1шт.

See figure 09B-11

1шт.

14

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

2шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

16

86502115

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

2шт.

17

1326538C91

GRAIN LIFTER

1шт.

18

87450154

DEFLECTOR

crop, Start Serial: CBJ023001

1шт.

19

1313160C2

CLAMP,32mm ID, 20mm Bolt Hole, J Type

1 1/2"

1шт.

20

86502115

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

1шт.

21

104155A1

SHIM,11.9mm ID x 38.1mm OD x 2.95mm Thk

.093", hold down clip

1шт.

22

1989552C1

GUARD

knife, 4 point

1шт.

23

100999A1

GUARD

2 point, (15.0, 20.0, 25.0 and 30.0 foot) LH

1шт.

24

101000A1

GUARD

2 point, (15.0, 20.0, 25.0 and 30.0 foot) RH

1шт.

26

86502115

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

1шт.

27

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

28

87450153

DEFLECTOR

crop LH, Start Serial: CBJ023001

1шт.

30

112428A1

KNIFE CLIP

hold down LH 1 1/2"

2шт.
