Запчасти Case IH 1020 (09A-13) - PICKUP REEL 6 BAT WITH PLASTIC TINES, AUXILIARY (09) - CHASSIS/ATTACHMENTS

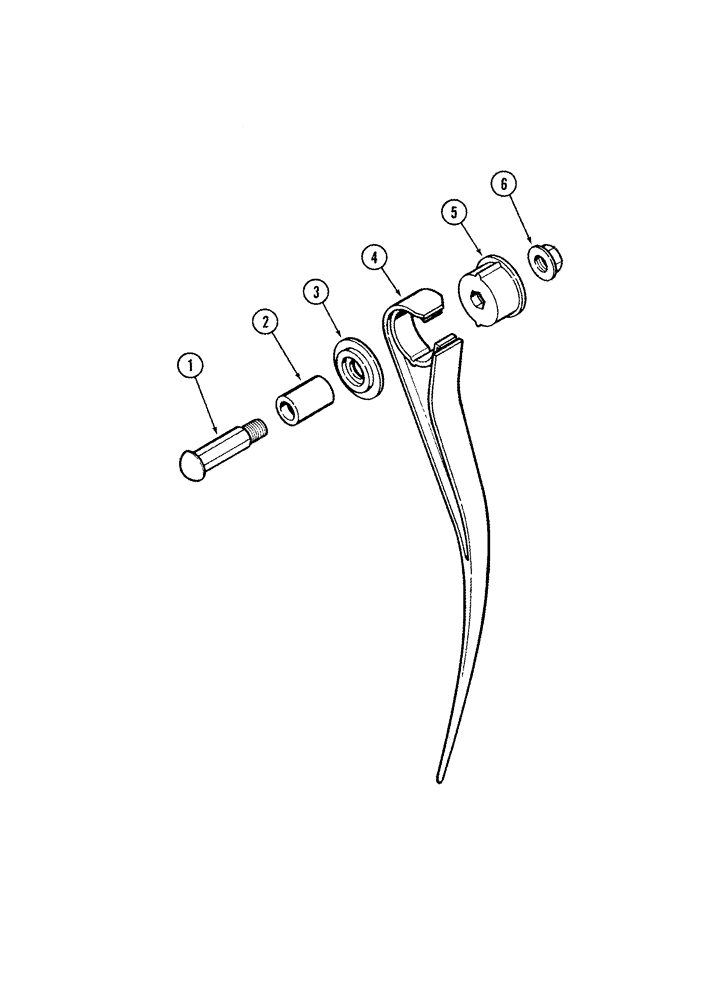

Схема запчастей Case IH 1020 - (09A-13) - PICKUP REEL 6 BAT WITH PLASTIC TINES, AUXILIARY (09) - CHASSIS/ATTACHMENTS
4
3
2
1
6
5

Артикул

Название

Примечание

Количество

1

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

round head hex shank, special, 1/2 NF x 2 1/2"

12шт.

2

598246R1

SPACER

9/16 ID x 1 1/4"

12шт.

3

1970591C1

RETAINER

auxiliary tine

12шт.

4

1970590C1

TINE

plastic, auxiliary

12шт.

5

1970592C1

SUPPORT

auxiliary tine

12шт.

6

827386C1

FLANGE NUT

hex flange, 1/2" NF

12шт.

Выбрано товаров: 6
