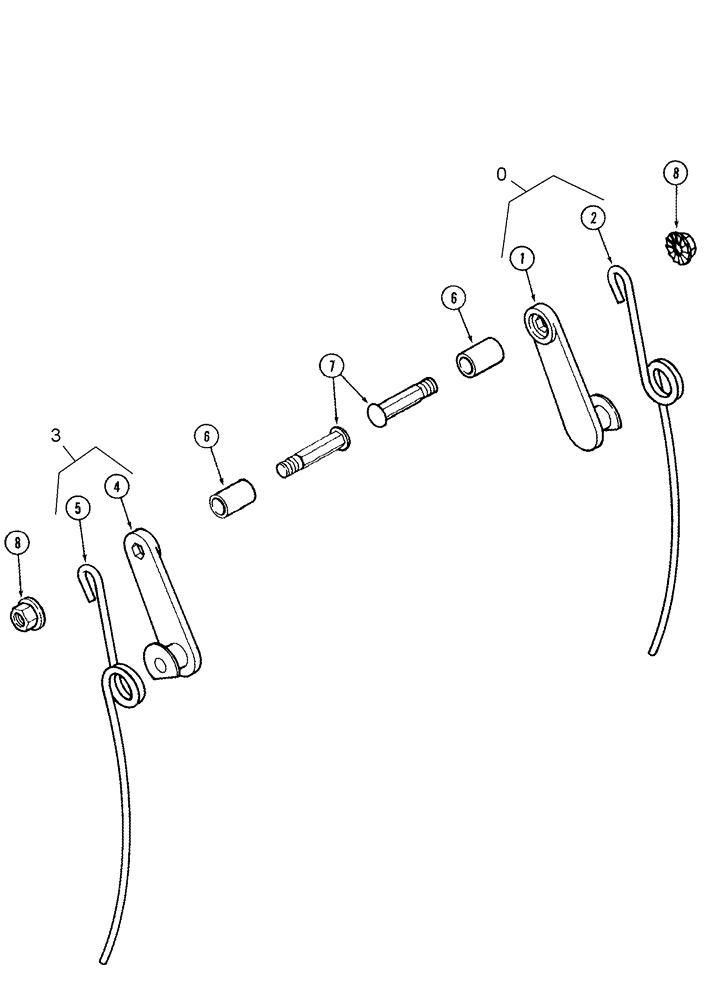

Запчасти Case IH 1020 (09A-12) - PICKUP REEL 6 BAT WITH STEEL TINES, AUXILIARY (09) - CHASSIS/ATTACHMENTS

0

167605C91

TINE

auxiliary pickup, LH

6шт.

Includes 1, 2

1шт.

1

592627R21

STRAP

finger

1шт.

2

167652C1

TINE,Coiled, 1 Prong, 437mm L

LH

1шт.

3

167606C91

TINE

auxiliary pickup, RH

6шт.

Includes 4, 5

1шт.

4

592627R21

STRAP

finger

1шт.

5

167651C1

TORSION SPRING

RH

1шт.

6

598246R1

SPACER

9/16 ID x 1 1/4"

12шт.

7

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

round head hex shank, special, 1/2 NF x 2 1/2"

12шт.

8

827386C1

FLANGE NUT

hex flange, 1/2" NF

12шт.
