Запчасти Case IH 1020 (08-18) - HYDRAULIC MULTI-COUPLER RETROFIT PACKAGE (08) - HYDRAULICS

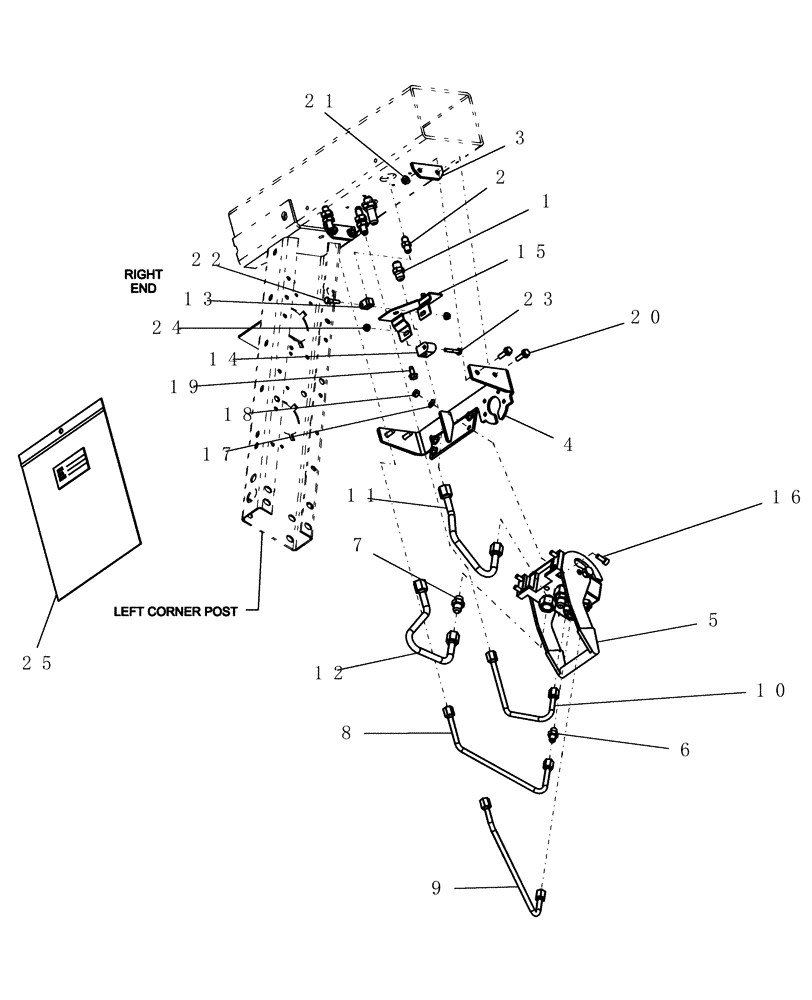

Схема запчастей Case IH 1020 - (08-18) - HYDRAULIC MULTI-COUPLER RETROFIT PACKAGE (08) - HYDRAULICS
9
2
15
25
7
10
17
24
13
4
19
14
21
11
6
16
23
5
12
22
8
20
18
1
3

Артикул

Название

Примечание

Количество

0

87552504

PACKAGE

hyd mult-coupler retrofit

1шт.

1

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

2

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

3

87552506

STEEL PLATE

coupler support

2шт.

4

87553159

BRACKET

hydraulic electrical support

1шт.

5

84434997

COUPLING

Quick, Multi-connection, refer to figure 08-19

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

3шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

8

87550239

TUBE,7.747 mm ID x 0.375 mm OD x 212.4, 84.9 mm L

reel fore

1шт.

9

87550240

TUBE,7.747 mm ID x 0.375 mm OD x 214, 51.2 mm L

reel aft

1шт.

10

87550238

TUBE,7.747 mm ID x 0.375 mm OD x 193, 103.2 mm L

reel lift

1шт.

11

87550236

TUBE,0.5" OD

reel drive pressure

1шт.

12

87550237

TUBE,0.5" OD

reel drive return

1шт.

13

183821C1

CLAMP

tube, single, 3/8" OD tube

1шт.

14

196447C1

CLAMP

1/2" tube EZA1318

1шт.

15

87552507

BRACKET

hydraulic tube support

1шт.

16

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

4шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

9706690

NUT,M8 x 1.25, Cl 8

4шт.

19

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

2шт.

20

86512168

BOLT,Hex Serr Flg, 5/16" - 18 x 1"

4шт.

21

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

22

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

23

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

24

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

25

87552632

INSTRUCTION

installation, kit

1шт.

Выбрано товаров: 26
