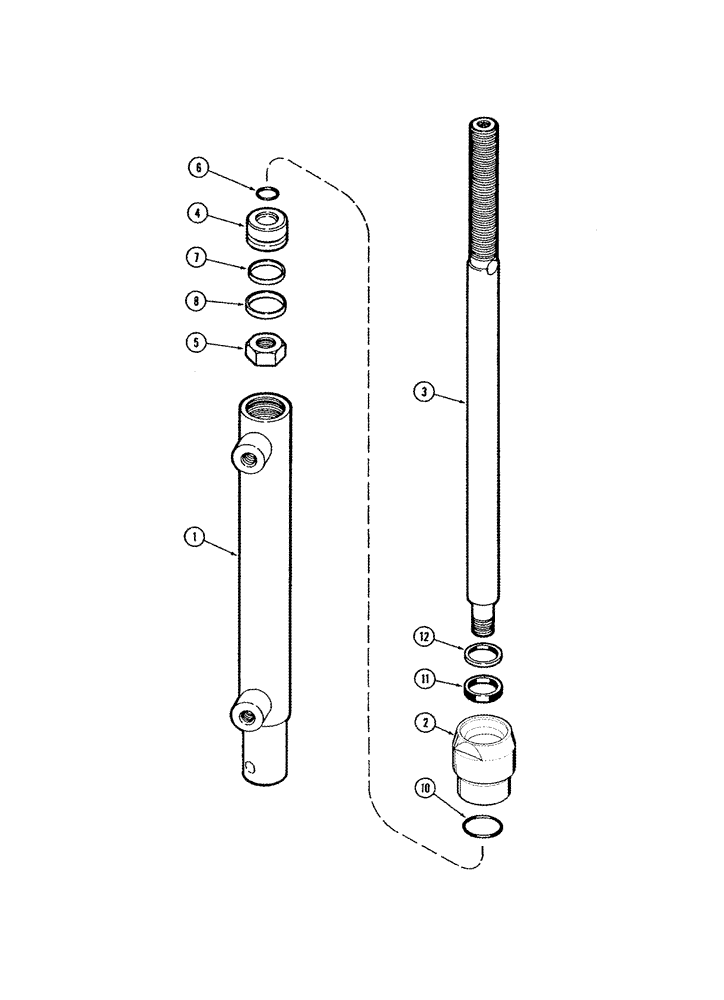

Запчасти Case IH 1020 (08-08) - REEL LIFT MASTER CYLINDER (08) - HYDRAULICS

0

87644249

HYDRAULIC CYLINDER,Double Acting, 28.7mm Rod, 238.51mm Stroke

1 1/2" x 9 3/8", Reel Lift Master, Start Serial: CBJ023001

1шт.

Includes 1 - 12

1шт.

1

87745698

HYD TUBE

Body

1шт.

2

87745697

CYLINDER END CAP

front

1шт.

3

87743582

PISTON ROD

1шт.

4

87745699

PISTON

1шт.

5

NSS

NOT SOLD SEPARAT

NUT, hex jam, 3/4"-16

1шт.

6-12

87746029

KIT

Seal, cylinder

1шт.

Includes 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL, rod

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER, seal, shaft

1шт.
