Запчасти Case IH 1020 (08-07) - REEL FORE AND AFT CYLINDER PICKUP REEL (08) - HYDRAULICS

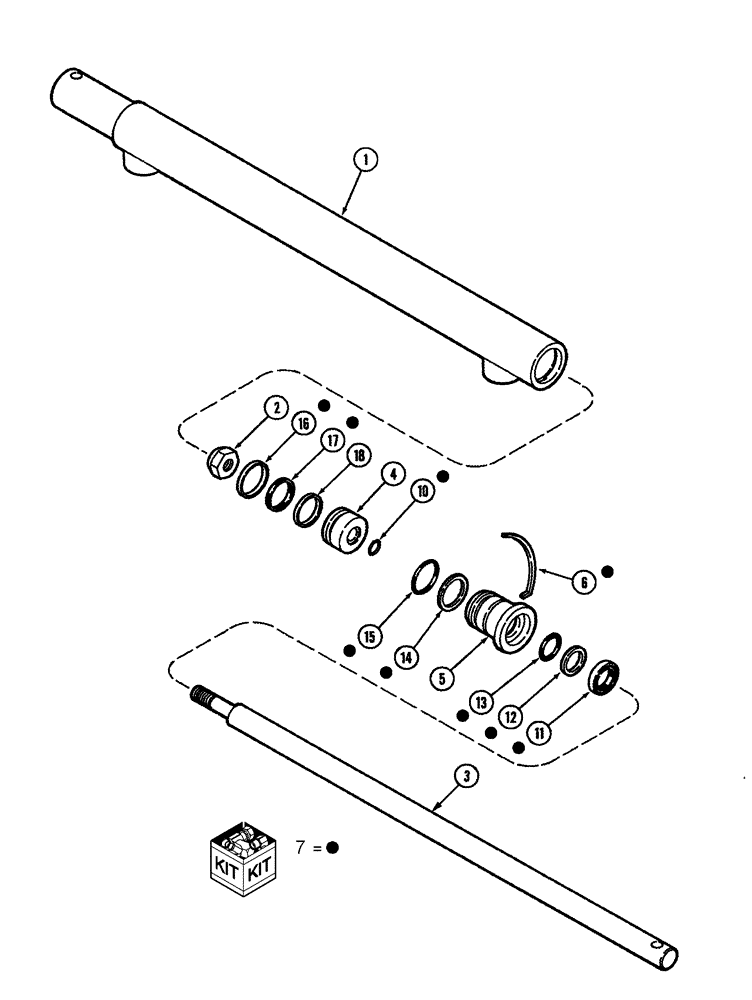

Схема запчастей Case IH 1020 - (08-07) - REEL FORE AND AFT CYLINDER PICKUP REEL (08) - HYDRAULICS
7
7
7
13
18
5
7
12
10
7
6
14
11
777
7
7
4
15
7
16
3
7
1
2
17

Артикул

Название

Примечание

Количество

0

277402A1

CYLINDER,Double Acting, 18.97mm Rod, 330.2mm Stroke

pickup reel

2шт.

Includes 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

232-4617

LOCK NUT,7/16"-20, GC

1шт.

3

294168A1

PISTON ROD

pickup reel

1шт.

4

370181A1

PISTON

1шт.

5

108996C1

CYLINDER HEAD

front

1шт.

6

547549R1

WIRE

front head

1шт.

7

370183A1

SEAL KIT

hydraulic cylinder

1шт.

Includes 6 - 17

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

108999C1

WIPER SEAL

rod

1шт.

12

108997C1

WASHER

1шт.

13

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

14

108998C1

WASHER

1шт.

15

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

16

532529R2

SEALING RING,29.057mm ID x 32.36mm OD x 3.17mm Thk

SEALRING quad

1шт.

17

239-5119

O-RING,Square, 0.094" Thk x 0.938" ID, -119, Cl 5, 75 Duro

1шт.

18

370180A1

RING

wear

1шт.

19

164380

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

Not Shown

1шт.

Выбрано товаров: 21
