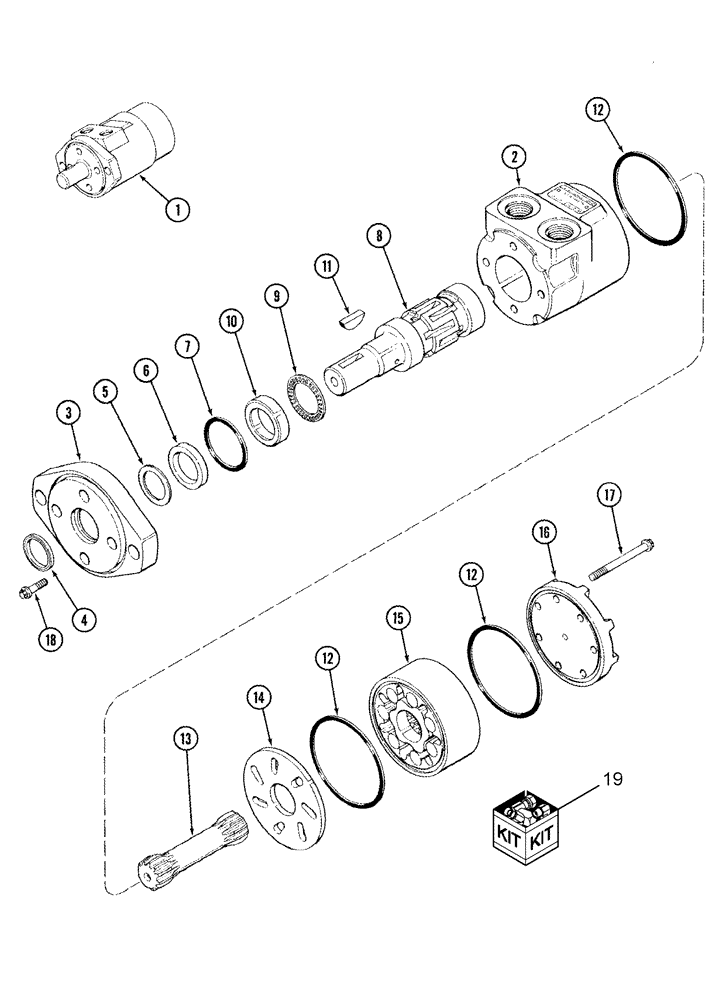

Запчасти Case IH 1020 (08-06) - REEL DRIVE MOTOR (08) - HYDRAULICS

1

130409A1

MOTOR, HYDRAULIC

reel drive

1шт.

Includes 2 - 18

1шт.

87036557R

REMAN-HYD MOTOR

1020 GRAIN HEADER (P.I.N. CBJ023001 AND AFTER) (11/04-); Reman for new PN 130409A1

1шт.

87036557C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

Cover

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Washer

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Shaft Assy

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Spacer

1шт.

11

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

12

NSS

NOT SOLD SEPARAT

Ring

3шт.

13

NSS

NOT SOLD SEPARAT

Link

1шт.

14

NSS

NOT SOLD SEPARAT

Plate

1шт.

15

NSS

NOT SOLD SEPARAT

Rotor Assy

1шт.

16

NSS

NOT SOLD SEPARAT

Cover

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt

7шт.

18

NSS

NOT SOLD SEPARAT

Bolt

4шт.

19

87036584

SEAL KIT

Auger Drive Motor

1шт.
