(09D-20) - DECALS - ENGLISH LANGUAGE

Запчасти Case IH 1020 (09D-20) - DECALS - ENGLISH LANGUAGE (09) - CHASSIS/ATTACHMENTS

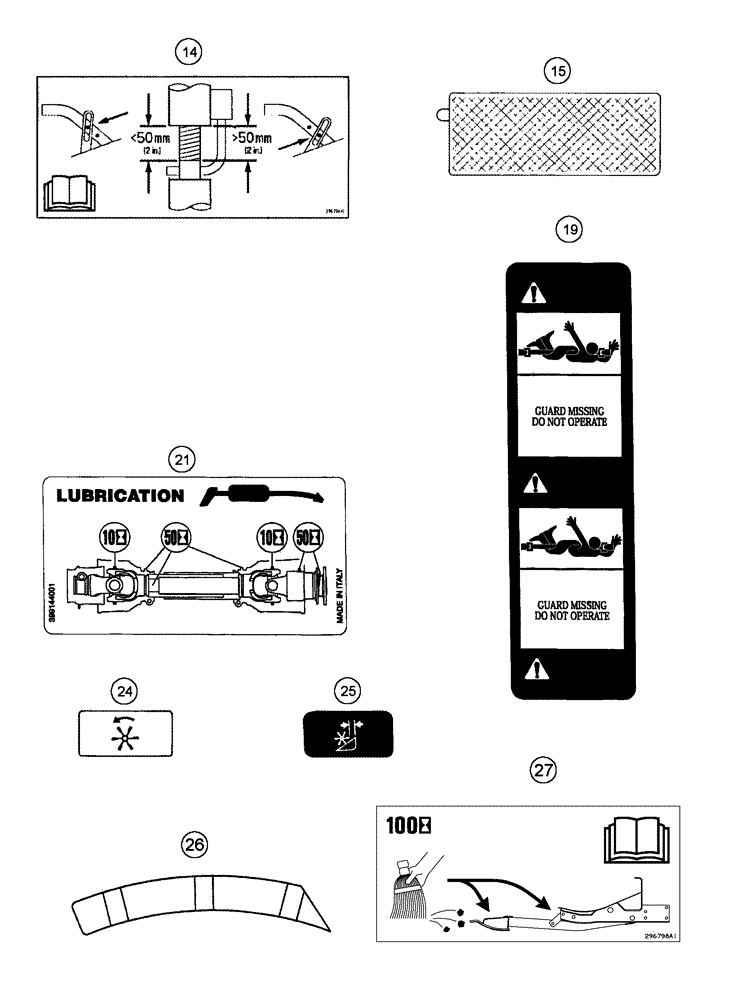

Схема запчастей Case IH 1020 - (09D-20) - DECALS - ENGLISH LANGUAGE (09) - CHASSIS/ATTACHMENTS
27
26
15
25
21
24
19
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

14

296796A1

DECAL

auger lift bracket

2шт.

15

1284374C1

REFLECTOR,Reflector Red

red

2шт.

15

1284365C2

REFLECTOR

amber 1.97" x 4.3"

2шт.

19

1326528C1

DECAL

Danger, shield missing, do not operate

2шт.

21

433531A2

DECAL

PTO driveline lubrication, Start Serial: CBJ023001

2шт.

24

1326618C1

DECAL

drive identification

1шт.

25

1326619C1

DECAL

fore/aft detent

1шт.

26

137708A1

DECAL

header height

1шт.

27

296798A1

DECAL

information, clean skids

1шт.
