Запчасти Case IH 1020 (09D-12) - HEADER HEIGHT CONTROL - UPPER (09) - CHASSIS/ATTACHMENTS

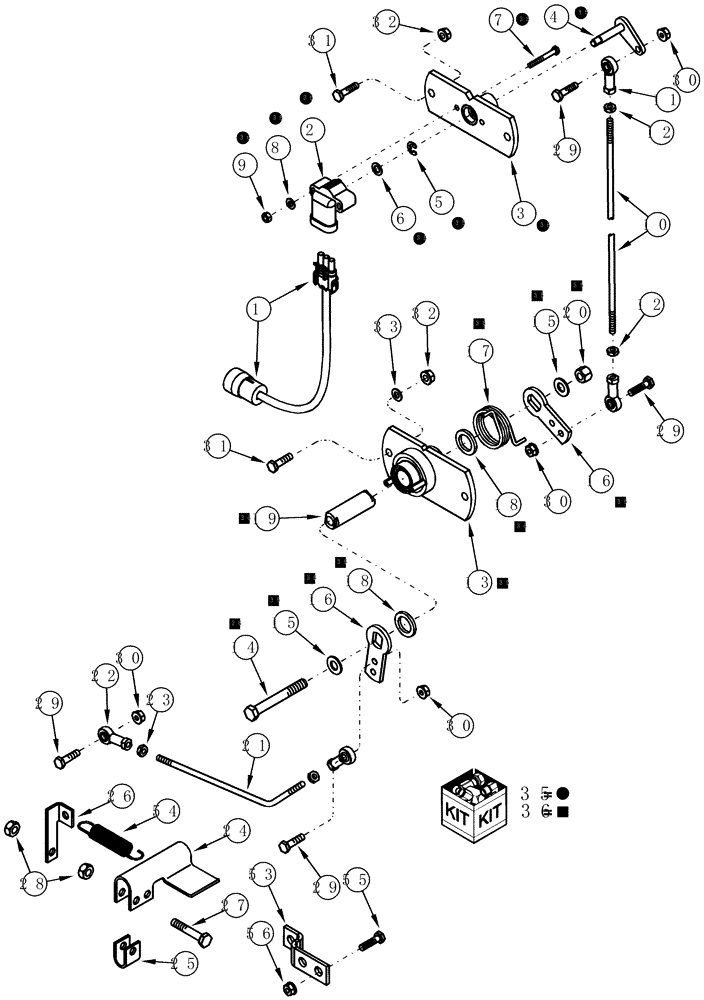

Схема запчастей Case IH 1020 - (09D-12) - HEADER HEIGHT CONTROL - UPPER (09) - CHASSIS/ATTACHMENTS
17
6
32
29
30
13
36
36
32
35
27
36
30
53
4
11
25
36
21
36
5
10
15
24
35
35
22
30
7
20
16
9
19
14
12
1
35
15
36
35
54
35
26
8
18
28
55
35
29
35
36
31
31
36
3
12
36
36
56
30
35
2
23
33
16
29
29
36
18
36

Артикул

Название

Примечание

Количество

1

434709A1

ARMATURE

header height

1шт.

1

434795A1

WIRE HARNESS

auto header height control pigtail, for 1400/1600 only, not illustrated

1шт.

1

87412210

WIRE HARNESS

adapter with resistors (use with 1400 & 1600) not illustrated

1шт.

2

86616339

SENSOR,CCW

Auto Header Height Control

1шт.

3

432843A1

SUPPORT

auto header height control upper pivot

1шт.

Includes 3A, Not Illustrated

1шт.

3a

432024A1

BUSHING

5/16" ID x 3/8" long

2шт.

4

431034A1

ARM

auto header height control sensor

1шт.

5

103-3431

SNAP RING,#31, Ext, E-Type

1шт.

6

239809A1

WASHER,8mm ID x 14mm OD x 1.2mm Thk

5/16"

1шт.

7

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

2шт.

8

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

2шт.

9

230-42409

NUT,#10-24, GA

2шт.

10

431037A1

ROD

auto header height control upper control

1шт.

Includes 11, 12

1шт.

11

431039A1

BALL JOINT HEAD,1/4" - 28

End, 1/4" Adjustable

2шт.

12

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

13

432845A1

SUPPORT

lower pivot

1шт.

Includes 13A, 13B

1шт.

13a

432023A1

BUSHING,19.05mm ID x 22.23mm OD x 19.05mm L

3/4" ID x 3/4" long, Not Illustrated

2шт.

13b

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

2шт.

14

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

15

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

16

431040A1

ARM

auto header height control linkage

2шт.

17

432842A1

SPRING

lower pivot return

1шт.

18

431041A1

SEAL,19.05mm ID x 28.58mm OD x 3.18mm Thk

lower pivot dust

2шт.

19

431045A1

SHAFT

auto header height control lower pivot

1шт.

20

88902

NUT,3/8"-16

1шт.

21

431046A1

ROD

auto header height control lower

1шт.

Includes 22, 23

1шт.

22

431039A1

BALL JOINT HEAD,1/4" - 28

End, 1/4" Adjustable

2шт.

23

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

24

1307610C2

SUPPORT

height control

1шт.

25

189956A1

SPACER

support

1шт.

26

335593A1

BRACKET

auto header height control spring assist

1шт.

27

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

88902

NUT,3/8"-16

1шт.

29

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

30

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

31

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

32

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

33

131-440

PUSH-ON NUT

Retainer 5/16, Bolt Pushon

4шт.

34

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

Not Shown

1шт.

35

432846A1

SUPPORT

auto header height control lower pivot

1шт.

Includes 13 - 20

1шт.

36

432844A1

SUPPORT

auto header height control upper sensor

1шт.

Includes 2 - 9

1шт.

53

335592A1

BRACKET

auto header height control spring assist

1шт.

54

D124939

SPRING

extension .067 wire .68 OD x 3.3 long

1шт.

55

135270

SERRATED SCREW,5/16" - 18 x 3/4"

2шт.

56

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

Выбрано товаров: 52
