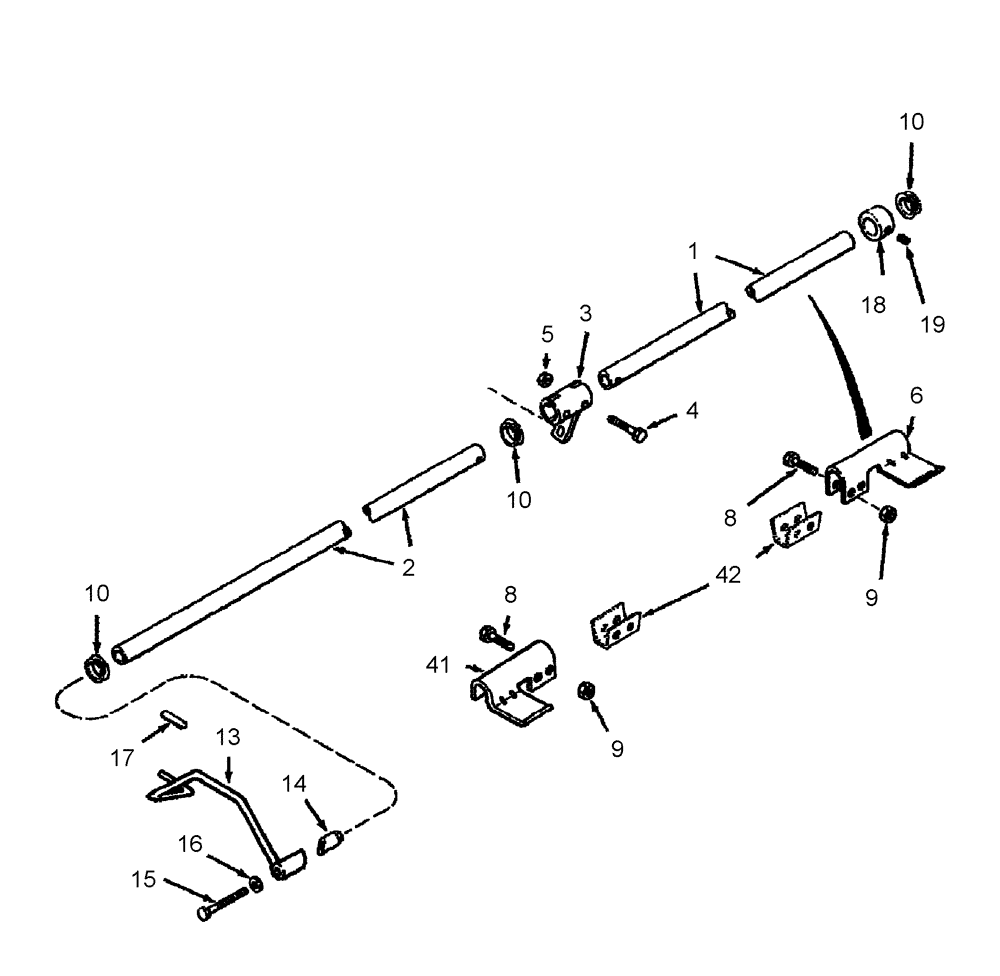

Запчасти Case IH 1020 (09D-11) - HEADER HEIGHT CONTROL - LOWER (09) - CHASSIS/ATTACHMENTS

1

87450144

TUBE,17.4 mm ID x 22.22 mm OD x 1854 mm L

sensor LH 20.0 foot, Start Serial: CBJ023001

1шт.

1

87450145

TUBE,17.4 mm ID x 22.22 mm OD x 2235 mm L

sensor LH 22.5 foot, Start Serial: CBJ023001

1шт.

1

87450146

TUBE,17.4 mm ID x 22.22 mm OD x 2616 mm L

sensor LH 25.0 foot, Start Serial: CBJ023001

1шт.

1

87450147

TUBE,17.4 mm ID x 22.22 mm OD x 3378 mm L

sensor LH 30.0 foot, Start Serial: CBJ023001

1шт.

2

87450138

TUBE,17.4 mm ID x 22.22 mm OD x 3656.5 mm L

sensor RH 17.5 foot, Start Serial: CBJ023001

1шт.

2

87450139

TUBE,17.4 mm ID x 22.22 mm OD x 4037.5 mm L

sensor RH 20.0 foot, Start Serial: CBJ023001

1шт.

2

87450140

TUBE,17.4mm ID x 22.22 mm OD x 4418.5 mm L

sensor RH 22.5 foot, Start Serial: CBJ023001

1шт.

2

87450141

TUBE,17.4 mm ID x 22.22 mm OD x 4799.5 mm L

sensor RH 25.0 foot, Start Serial: CBJ023001

1шт.

2

87450142

TUBE,17.4 mm ID x 22.22 mm OD x 5561.5 mm L

sensor RH 30.0 foot, Start Serial: CBJ023001

1шт.

3

310964A2

ARM

connector

1шт.

4

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

5

280736

NUT,5/16"-18, GC

2шт.

6

1307610C2

SUPPORT

height control

1шт.

8

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

9

88902

NUT,3/8"-16

1шт.

10

1313081C1

BUSHING,23mm ID x 28.57mm OD x 6.84mm L

pivot

1шт.

13

87450160

ROD

rod, Start Serial: CBJ023001

1шт.

14

1316572C1

PLUG

indicator rod, beveled

1шт.

15

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

16

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

17

1326543C1

CAP

indicator end

1шт.

18

1308482C1

COLLAR

sensing tube

1шт.

19

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

1шт.

41

185230A1

SUPPORT

height control, LH

1шт.

42

189956A1

SPACER

support

1шт.
