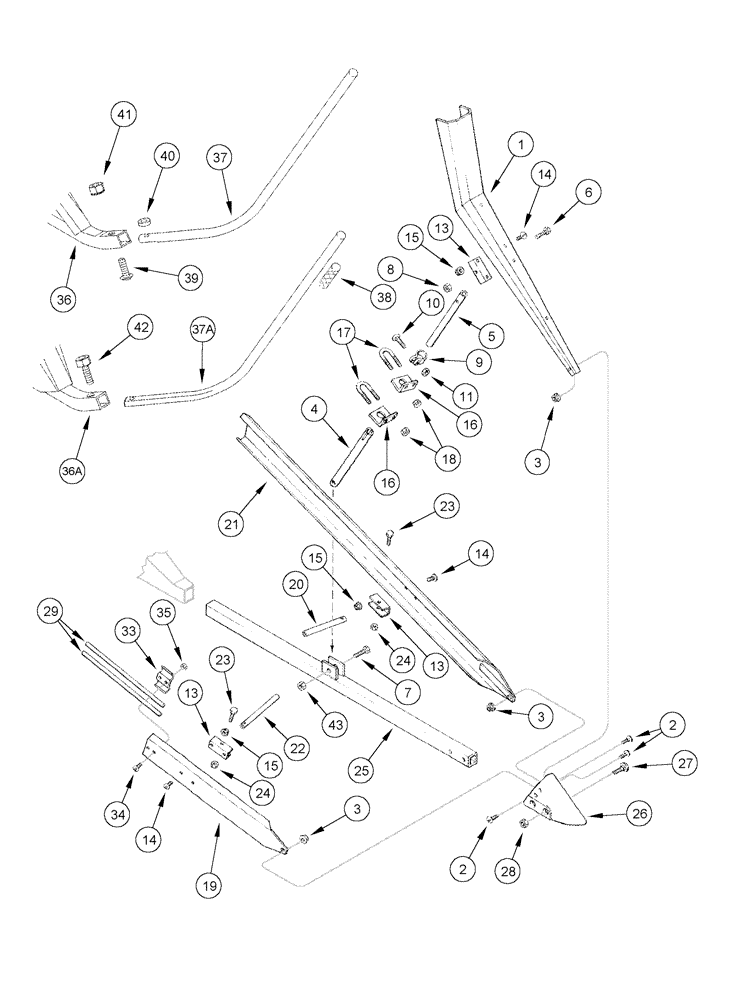

Запчасти Case IH 1020 (09D-10) - WING DIVIDERS AND ROD DIVIDERS (09) - CHASSIS/ATTACHMENTS

1

87017761

SUPPORT

upper wing

2шт.

2

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

4шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

4шт.

4

87017756

TUBE,23.03 mm ID x 28.57 mm OD x 390 mm L

wing, lower, Start Serial: CBJ023001

2шт.

5

1307692C2

TUBE,390 mm Length

wing, upper

2шт.

6

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

7

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

280736

NUT,5/16"-18, GC

2шт.

9

1300176C1

CLAMP,28.5mm ID

tie rod

2шт.

Includes 10, 11

1шт.

9

430399A1

CLAMP

1 1/8" wing divider

2шт.

10

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

11

86992215

LOCK NUT,1/2"-13, GC

2шт.

13

86627644

SUPPORT

inner/outer wing, Start Serial: CBJ023001

6шт.

14

135270

SERRATED SCREW,5/16" - 18 x 3/4"

16шт.

15

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

16

87450149

ANGLE

, Start Serial: CBJ023001

4шт.

17

86997191

U-BOLT

1/2"-13, 1-21/32" x 3-5/64"

4шт.

18

86992215

LOCK NUT,1/2"-13, GC

8шт.

19

87571655

SUPPORT

inner wing

2шт.

20

87450158

PIPE

21.34 OD x 13.88 ID, Inner, Start Serial: CBJ023001

2шт.

21

87017760

SUPPORT

outer wing

2шт.

22

1307693C1

PIPE

wing support, outer

2шт.

23

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

24

280736

NUT,5/16"-18, GC

4шт.

25

1316201C2

TUBE

wing divider-flex

2шт.

26

86997152

DIVIDER POINT

, Start Serial: CBJ023001

2шт.

27

280744

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

4шт.

28

88902

NUT,3/8"-16

4шт.

29

86997190

TUBE,15.24 mm ID x 19.05 mm OD x 450 mm L

ong (wing tube) 15.24 mm ID x 19.05 mm OD x 450 mm L

4шт.

33

86997188

CLAMP

divider wing tubes

2шт.

34

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

4шт.

35

280129

NUT,1/4"-20

4шт.

36a

368963A1

TUBE,202 mm Length

tube, short, divider, Start Serial: CBJ023001

2шт.

37a

369442A1

ROD

divider with reflector, Start Serial: CBJ023001

2шт.

Includes 38

1шт.

37a

368941A1

ROD

divider without reflector, Start Serial: CBJ023001

2шт.

38

369441A1

DECAL

divider rod

1шт.

39

477-73124

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/2"

2шт.

40

700121908

SPACER

1/4 X 3/8"

2шт.

41

231-5315

FLANGE NUT,Flg, 5/16"-18

2шт.

42

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

2шт.

43

88902

NUT,3/8"-16

2шт.
