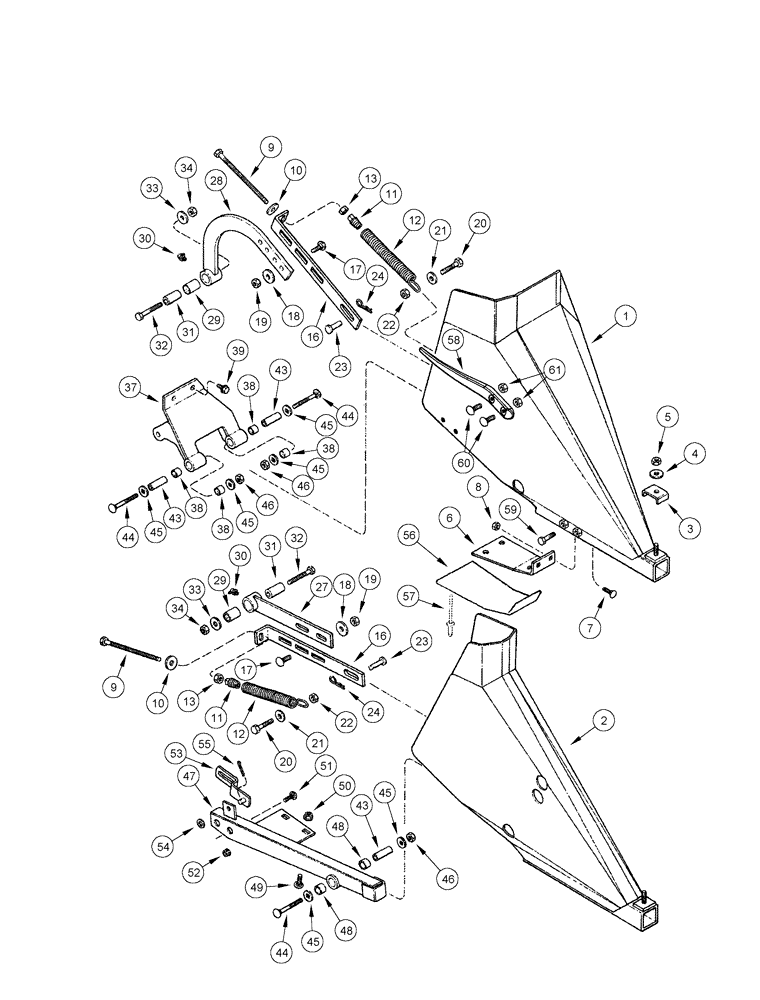

Запчасти Case IH 1020 (09D-09) - DIVIDERS (09) - CHASSIS/ATTACHMENTS

1

1316060C6

DIVIDER

LH, Start Serial: CBJ023001

1шт.

2

1316061C3

DIVIDER

RH, Start Serial: CBJ023001

1шт.

3

1316709C2

CLAMP

wing tube

2шт.

4

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

special, 17/32 x 1 1/2 x 3/16"

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

2шт.

6

1316847C3

SUPPORT

plate, knife head guard

1шт.

7

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

8

88902

NUT,3/8"-16

2шт.

9

113-2301

BOLT,Hex, 1/2" - 13 x 8", Gr 5

, Start Serial: CBJ023001

2шт.

10

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

2шт.

11

1316731C2

PLUG

spring

2шт.

12

87450163

SPRING

extension .207 x 1 1/4 od x 8.9 long, Start Serial: CBJ023001

2шт.

13

280431

NUT,1/2"-13, G5

2шт.

16

87450159

SUPPORT

link, lower divider pivot, Start Serial: CBJ023001

2шт.

17

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

18

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

4шт.

19

86992215

LOCK NUT,1/2"-13, GC

4шт.

20

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

2шт.

21

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

2шт.

22

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

23

439-51224

HEADED PIN,19.05mm OD x 38.1mm L

2шт.

24

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

2шт.

27

1316787C93

LINK

divider pivot RH

1шт.

Includes 29, 30

1шт.

28

87450157

LINK

divider pivot LH, Start Serial: CBJ023001

1шт.

Includes 29, 30

1шт.

29

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

1 1/8 x 1 x 1 1/2 long

1шт.

30

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

31

1326465C2

BUSHING,13.5mm ID x 25.4mm OD x 44.45mm L

link pivot

2шт.

32

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

33

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

special, 17/32 x 1 1/2 x 3/16"

2шт.

34

86992215

LOCK NUT,1/2"-13, GC

3шт.

37

140387A1

SUPPORT

divider, LH

1шт.

Includes 38

1шт.

37

87450167

SUPPORT

divider pivot LH

1шт.

Includes 38

1шт.

38

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

19 mm (3/4 in) dia

4шт.

39

87034823

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

43

1316782C1

BUSHING,12.95mm ID x 18.9mm OD x 50.5mm L

divider pivot

3шт.

44

280268

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5

3шт.

45

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

6шт.

46

86992215

LOCK NUT,1/2"-13, GC

3шт.

47

1316322C92

SUPPORT

divider, RH, Years: -01-OCT-07

1шт.

Includes 48

1шт.

47

87693675

SUPPORT

divider RH, Start Year: 01-NOV-07

1шт.

48

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

19 mm (3/4 in) dia

2шт.

49

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

50

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

51

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

52

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

53

1316674C3

ARM

downstop, RH

1шт.

54

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

55

80755

COTTER PIN,1/8" OD x 1" L

2шт.

56

244874A1

SKID/SHOE

poly knife head guard

1шт.

56

377588A1

SKID/SHOE

poly knife heavy duty guard

1шт.

57

87013355

RIVET,Pop, 6.35mm OD x 19.05mm L

4шт.

58

394417A1

DEFLECTOR

crop

6шт.

59

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

60

477-82516

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

8шт.

61

9626558

FLANGE NUT,Flg, 1/4"-20

8шт.
