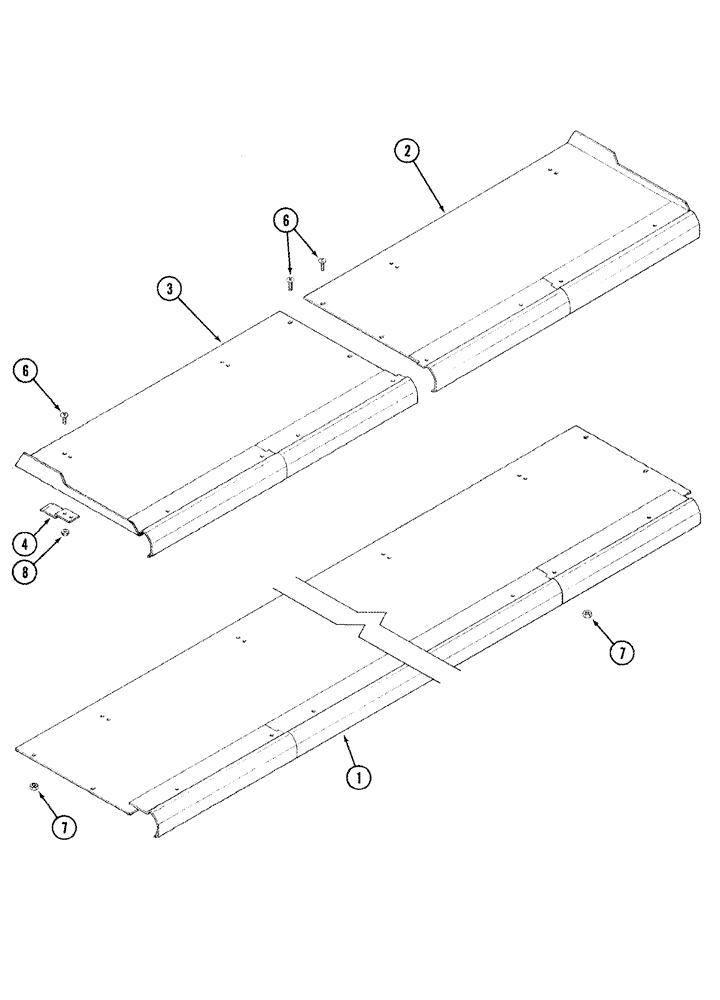

Запчасти Case IH 1020 (09D-08) - BOTTOM SHEETS (09) - CHASSIS/ATTACHMENTS

1

1313156C2

SHIELD

center, bottom

1шт.

2

1313132C2

SHIELD

LH, bottom, (15.0 foot)

1шт.

2

1326814C2

SHIELD

bottom, (16.5 foot) LH

1шт.

2

1313133C2

SHIELD

bottom, (17.5 foot) LH

1шт.

2

1313134C2

SHIELD

bottom, (20.0 foot) LH

1шт.

2

1313135C2

SHIELD

bottom, (22.5 foot) LH

1шт.

2

1313136C2

SHIELD

bottom, (25.0 foot) LH

1шт.

2

1313137C2

SHIELD

bottom, (30.0 foot) LH

1шт.

3

1313138C2

SHIELD

bottom, (15.0 foot) RH

1шт.

3

1326815C2

SHIELD

bottom, (16.5 foot) RH

1шт.

3

1313139C2

SHIELD

RH, bottom, 17.5 foot

1шт.

3

1313140C2

SHIELD

bottom, (20.0 foot) RH

1шт.

3

1313141C2

SHIELD

bottom, (22.5 foot) RH

1шт.

3

1313142C2

SHIELD

bottom, (25.0 foot) RH

1шт.

3

1313143C2

SHIELD

bottom, (30.0 foot) RH

1шт.

4

1307580C2

CLIP

bottom sheet rear

1шт.

6

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1шт.

7

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

8

523282

SERRATED NUT,Flg, USR, 1/4"-20

1шт.
