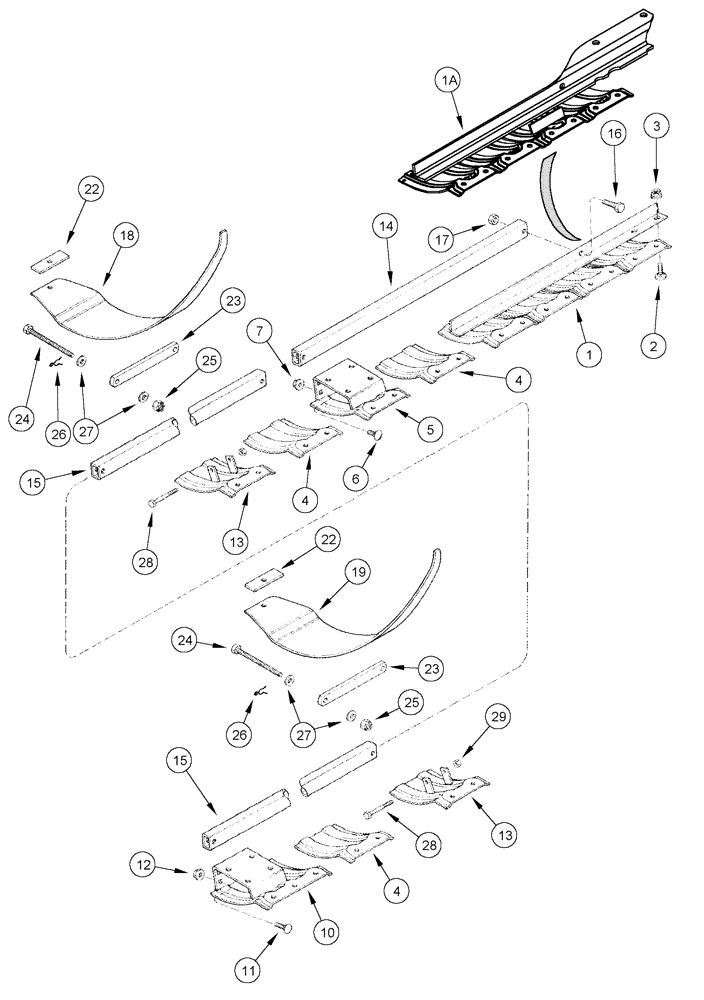

Запчасти Case IH 1020 (09D-06) - CUTTER BAR SKIDS AND SUPPORT SPRINGS (09) - CHASSIS/ATTACHMENTS

1a

390538A2

SKID/SHOE

15.0, 20.0, 25.0 and 30.0 foot, Start Serial: CBJ023001

1шт.

1a

390539A2

SKID/SHOE

16.5, 17.5 and 22.5 foot, Start Serial: CBJ023001

1шт.

2

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

3

232-5318

FLANGE NUT,Flg, 1/2"-13

2шт.

4

87502670

SHOE

cutterbar skid, Start Serial: CBJ023001

1шт.

5

1307398C5

SUPPORT

skid, runner

1шт.

16.5, 17.5 and 22.5 foot

1шт.

6

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

10

1316335C6

SUPPORT

skid, RH runner

1шт.

15.0, 20.0, 25.0 and 30.0 Foot Headers

1шт.

11

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

13

1307466C4

SUPPORT

skid, spring

1шт.

14

1320908C2

TUBE,845.5 mm Length

cutter bar, lockout

1шт.

15

1320914C2

TUBE,1226.5 mm Length

cutter bar (15.0 foot)

2шт.

15

1320913C2

TUBE,693 mm Length

cutter bar (17.5 foot)

2шт.

15

1320912C2

TUBE,1074 mm Length

cutter bar (20.0 foot)

2шт.

15

1320911C2

TUBE,540.5 mm Length

cutter bar (16.5 and 22.5 foot)

2шт.

15

1320910C2

TUBE,921.5 mm Length

cutter bar (25.0 foot)

2шт.

15

1320909C2

TUBE,769 mm Length

cutter bar (30.0 foot)

2шт.

16

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

17

704734

FLANGE NUT,Flg, 3/8"-16

1шт.

18

87450184

SPRING, LEAF

cutterbar support, Start Serial: CBJ023001

1шт.

19

87450185

SUPPORT

RH, Start Serial: CBJ023001

1шт.

22

1316387C1

PLATE

spring support

1шт.

23

1305054C2

BAR

spring adjusting

1шт.

24

323794A1

BOLT

1/2 x 5 1/2" UNC G8 with 6 1/4" thread and with hole

1шт.

25

425-128

SLOTTED NUT,1/2"-13, G5

1шт.

26

86637813

PIN,3.17mm OD x 25mm L, Coiled

1шт.

27

86624187

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

1шт.

28

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

1шт.

29

280736

NUT,5/16"-18, GC

1шт.
